 GminiP系列 （该微型
泵体积小，体积如拇指大，电流小、功耗低、噪声小、并带二安装孔、抗腐蚀性气体和臭氧气体。适合袖珍泵吸式分析器、气体采样器、医疗仪、美容仪等。功耗在同类泵中最低） |
||||||||||
| 名称及型号 | 主要性能描述 | Positive Pressure(kPa) | Negative Pressure (kPa) | Voltage(V) | Flow Rate mL/min | 空载电流 mA | Weight (g) | 泵的尺寸安 装使用说明 | 外观图 | 备注 |
| GminiP | 35 | 20 | 2-5 | 100-750 | 30-50 | 16 | 16×24×31 Details |  |
Unit Conversion Table | |
| GminiP | 35 | 20 | 2-5 | 50-350 | 30-40 | 16 | 16×24×31 Details | Same as above | ||
| GMPA series miniture air pump（体积小，功耗小，电流小，噪声小,稳定可靠，带安装孔，用于锂电池供电的仪表，适合追求高品质用户适合袖珍泵吸式、气体采样器、医疗仪、美容仪等。功耗在同类泵中最低）特殊需要可装出0.1MPaPositive Pressure以上) |
||||||||||

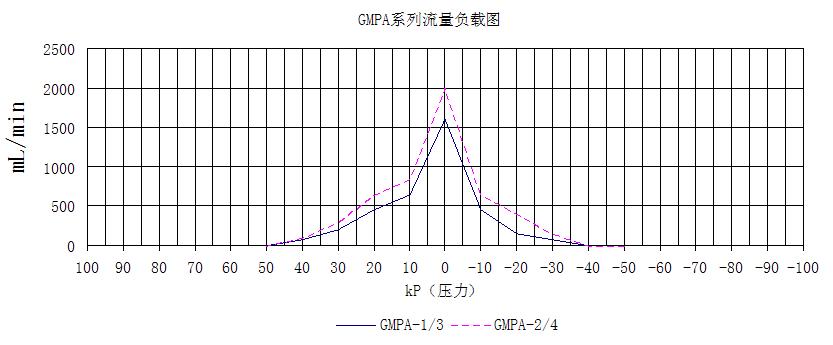

| GMPA-1 | Pressure - Flow Rate Diagram

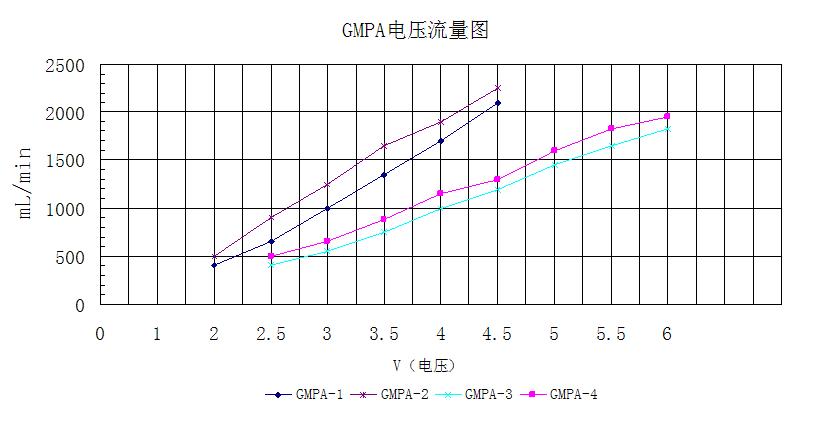

Votage - Flow Rate Diagram |
50 | 20-30 | 1.5-5 建议3-4 | 0.3-1.5 | ≈40-100 | 35 | 40×23×36 Details |  |
|
| GMPA-2 | Same as above | 50 | 30-40 | 2.0-5 建议3-4 | 0.5-2.0 | ≈30-100 | 35 | 40×23×36 Details | Same as above | |
| GMPA-3 | Same as above | 50 | 20-30 | 3-6 | 0.5-1.5 | ≈40-70 电流真小 | 35 | 40×23×36 Details | Same as above | |
| GMPA-4 | Same as above | 50 | 30-40 | 3-6 | 0.5-1.8 | ≈50-90 电流真小 | 35 | 40×23×36 Details | Same as above | |
| GMPB系列微型气（体积小，稳定可靠，无死角；用于泵吸式气体分析仪器和报警仪器，尤其适合Negative Pressure要求较高的环境。适合袖珍泵吸式、气体采样器、医疗仪、美容仪、吸乳器
）特殊需要可装出0.1MPaPositive Pressure以上) |
||||||||||

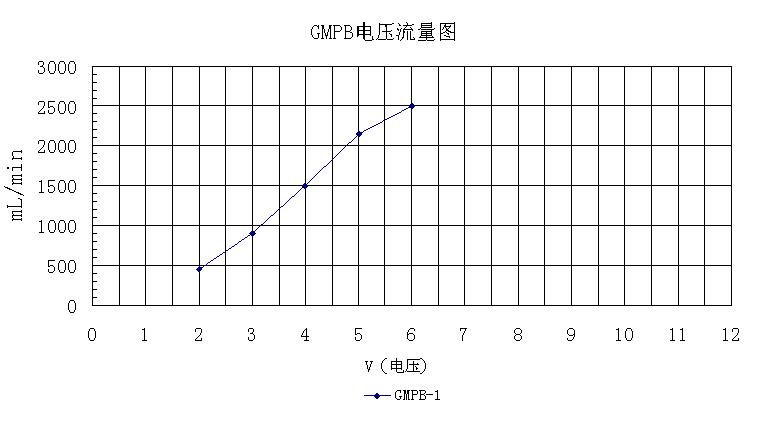

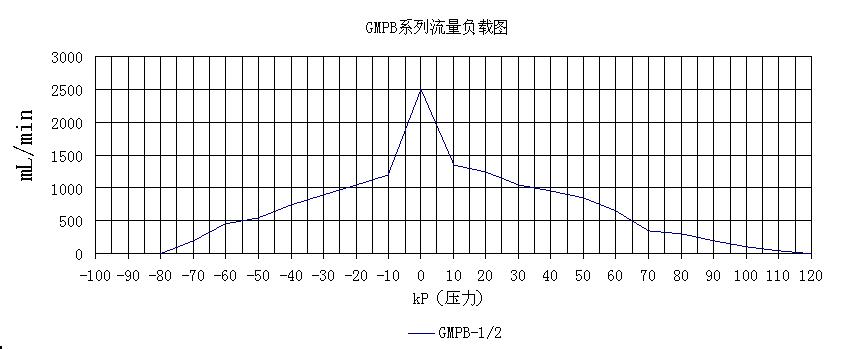

| GMPB-1 | Pressure - Flow Rate Diagram
Votage - Flow Rate Diagram |
>100 | 50-75 | 6 | 2.0-2.6 | ≈160 | 45 | 48×23×36 Details |  |
 |
| GMPB-2 | Same as above | >100 | 50-75 | 12 | 2.0-2.5 | ≈80 | 42 | 48×31×22 Details | Same as above | |
| GMPC series miniture air pump（体积小，稳定可靠,用于泵吸式手持仪器，噪声低,功耗小。尤其适合Negative Pressure要求较高的环境。适合袖珍泵吸式、气体采样器、医疗仪、美容仪、吸乳器
）特殊需要可装出0.1MPaPositive Pressure以上) |
||||||||||

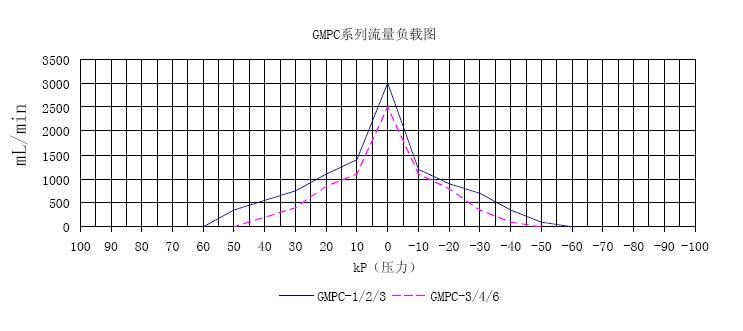

| GMPC-1 | Pressure - Flow Rate Diagram Votage - Flow Rate Diagram |
>100 | 吸气 50-65 | 6 | 0.5-3 | <160 | 45 | 50×22×31 Details |  |
Unit Conversion Table |
| GMPC-2 | Same as above | >100 | 吸气 50-65 | 9 | 0.5-3 | <120 | 45 | 50*22×31 Details | Same as above | Unit Conversion Table |
| GMPC-3 | Same as above | >100 | 50-65 | 12 | 0.5-3 | <90 | 45 | 50×22×31 Details | Same as above | Unit Conversion Table |
| GMPC-4 | Same as above | >100 | 吸气 50-55 | 6 | 0.5-2.5 | <1 size=2>50 | 45 | 50×22×31 Details | Same as above | |
| GMPC-5 | Same as above | 80-100 | 50-55 | 9 | 0.5-2.5 | <110 | 45 | 50×22×31 Details | Same as above | |
| GMPC-6 | Same as above | 80-100 | 50-55 | 12 | 0.5-2.5 | <80 | 45 | 50×22×31 Details | Same as above | |
| GMPD series miniture air pump（体积小、重轻、Flow Rate大，Flow Rate体积重量比，世界第一，稳定性好。气体采样器、按摩器类、医疗仪、美容仪
等。功耗在同类泵中最低）特殊需要可装出0.1MPaPositive Pressure以上) |
||||||||||

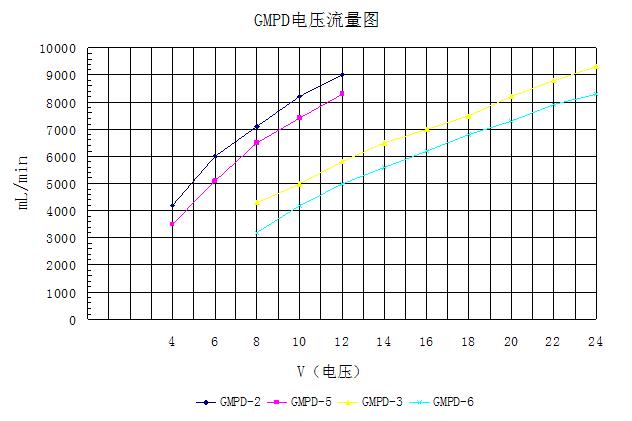

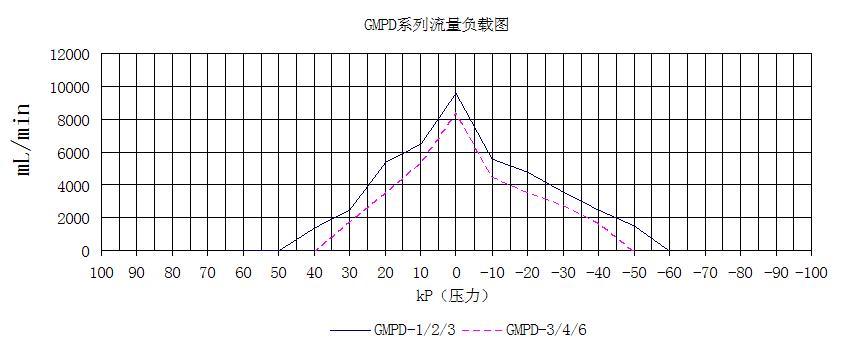

| GMPD-1/2/3 | Pressure - Flow Rate Diagram
Votage - Flow Rate Diagram |
60-100 | 60 | 6/12/24 | 3-8 | <230 130 80 | 82 | 35×44.5×56.5 Details |
 |
Unit Conversion Table |
| GMPD-4/5/6 | Same as above | 60-100 | 50 | 6/12/24 | 3-7 | <200/100/60 | 82 | 35×44.5×56.5
Details |
Same as above | |
| GMPE series miniture air pump（提供一种特殊电机，寿命长，电机体积也较大，Flow Rate毫不逊色。适合气体采样器、按摩器类、医疗仪、美容仪、吸乳器。） |
||||||||||

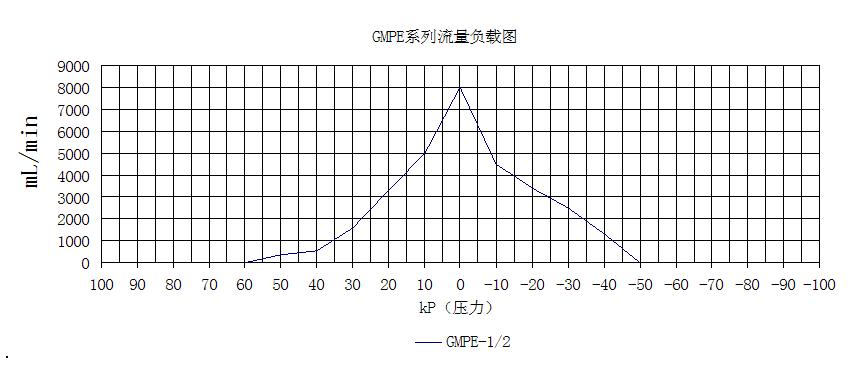

| GMPE-1/2 | Pressure - Flow Rate Diagram

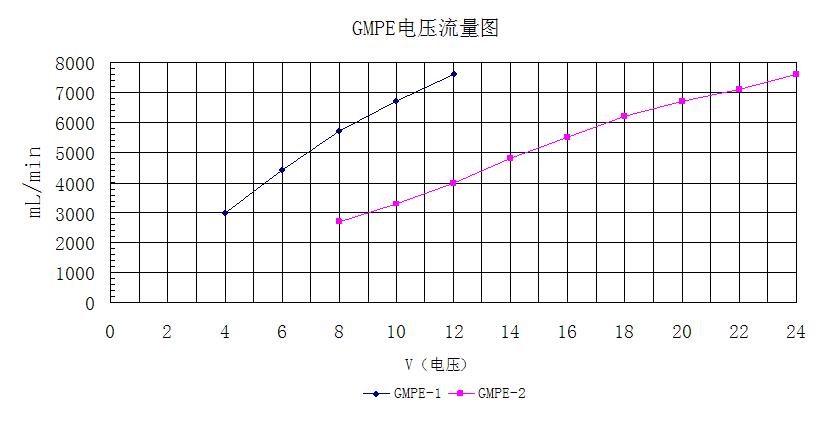

Votage - Flow Rate Diagram |
60 | 50-55 | 12/24 | 3-6 | <180/90 | 149 | 35×44.5×71.5
Details |
 |
Unit Conversion Table |
| GMPF15 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样。特殊需要可装出0.1MPaPositive Pressure以上) |
||||||||||
| 名称及型号 | 主要性能描述 | Positive Pressure(kPa) | Negative Pressure (kPa) | Voltage(V) | Flow Rate L/min | 空载电流 A | Weight (g) | 泵的尺寸 安装使用说明 | 外观图 | 备注 |
| GMPF10 | Voltage Adjustable (Continuous) | 50 | 25 | 12/24 | 3-12 | <0.500 | 480 | 86×56.5×126
Details |
 |
Unit Conversion Table |
| GMPF15 | Voltage Adjustable (Continuous) | 50 | 40 | 12/24 | 3-18 | <0.500 | 480 | 86×56.5×126
Details |
Same as above | |
| GMPF20 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样，
变化电机和Voltage可产生6个品种。特殊需要可装出0.1MPaPositive Pressure以上 |
||||||||||
| GMP20B | Voltage Adjustable (Continuous) | 100 | 20-50 | 6-12/24 | 10/20/25 | <0.500 | 480 | 86×56.5×126 Details |
|
|
| GMP20A | Voltage Adjustable (Continuous) | 100 | 20-50 | 6-12/24 | 10/20/25 | <0.500 | 480 | 86×56.5×126
Details |
 |
|
| GMPF25 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样，
变化电机和Voltage可产生6个品种。特殊需要可装出0.1MPaPositive Pressure以上 |
||||||||||
| GMPF25 | 100 | 20-50 | 6-12/24 | 30/36 | <0.450 | 620 | 86×70×126
Details |
Same as above | 有货 | |
| GMPG20 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样，
变化电机和Voltage可产生6个品种。特殊需要可装出0.1MPaPositive Pressure以上 |
||||||||||
| 名称及型号 | 主要性能描述 | Positive Pressure(kPa) | Negative Pressure (kPa) | Voltage(V) | Flow Rate L/min | 空载电流 A | Weight (g) | 泵的尺寸 安装使用说明 | 外观图 | 备注 |
| GMPG20 | 100 | 20-50 | 6-12/24 | 20 | <0.450 | 620 | 86×70×126
Details |
 |
Unit Conversion Table | |
| GMPG25 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样，
变化电机和Voltage可产生6个品种。特殊需要可装出0.1MPaPositive Pressure以上。 |
||||||||||
| GMPG25 | 100 | 20-50 | 6-12/24 | 25 | <0.450 | 620 | 86×70×126 Details |
Same as above | Unit Conversion Table | |
| GMPG30 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样变化电机和Voltage可产生6个品种。 |
||||||||||
| 名称及型号 | 主要性能描述 | Positive Pressure(kPa) | Negative Pressure (kPa) | Voltage(V) | Flow Rate L/min | 空载电流 A | Weight (g) | 泵的尺寸
安装使用说明 |
外观图 | 备注 |
| GMPG30 | 100 | 20-50 | 6-12/24 | 30 | <0.450 | 620 | 86×70×126 Details |
Same as above | Unit Conversion Table | |
| GMPG35 series miniture air pump 根据用户新推出的单通道气泵，Flow Rate很稳定
，适合各种气体采样，
变化电机和Voltage可产生6个品种。 |
||||||||||
| GMPG35 | 100 | 20-50 | 6-9/24 | 36 | <0.450 | 620 | 86×70×126 Details |
Same as above | Unit Conversion Table | |
| GDMPB系列微型（该泵由于双头泵气路可以相位互补混合，可满足恒流采样的要求，同时一泵可以代替双泵的抽打和采样，使系统控制电路变得简单，降低电路成本，功能更加灵活。适合袖珍泵吸式、气体采样器、医疗仪、美容仪
等。功耗在同类泵中最低）特殊需要可装出0.3MPaPositive Pressure以上 |
||||||||||

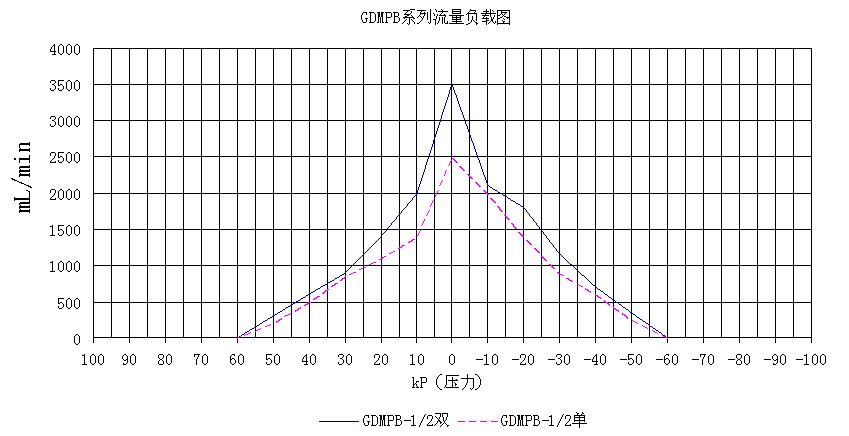

| GDMPB-1/2 | Pressure - Flow Rate Diagram

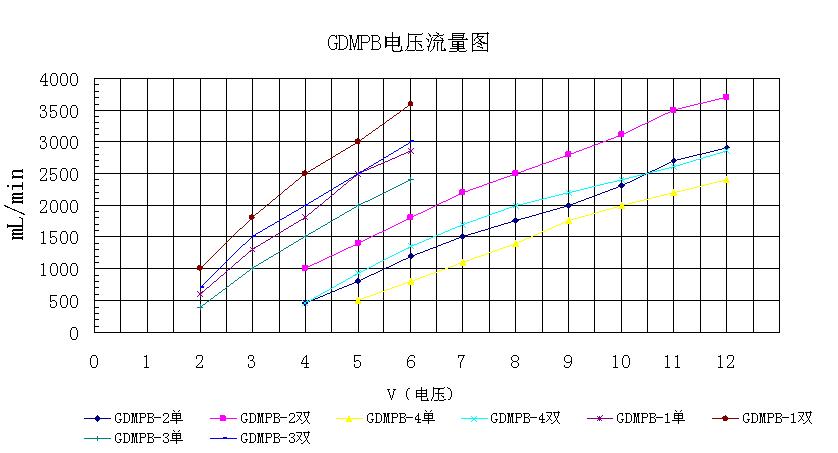

Votage - Flow Rate Diagram |
100 串联 260 | 吸气 45-55串联Negative Pressure75 | 6/12 | 单路:2×2 双路:2.8 | <0.25 0.135 | 55 | 24×47×49
Details |
 |
|
| GDMPB-3/4 | Pressure - Flow Rate Diagram
Votage - Flow Rate Diagram |
100 串联 260 | 吸气 50-65 | 6/12 | 单路:2.5×2双路:3.8 | <0.25 0.135 | 55 | 24×47×49
Details |
Same as above | |
| GDMPC系列微型双头气泵（该泵由于双头泵气路可以相位互补混合，可满足恒流采样的要求，同时一泵可以代替双泵的抽打和采样，使系统控制电路变得简单，降低电路成本，功能更加灵活。适合袖珍泵吸式、气体采样器、医疗仪、美容仪
等。功耗在同类泵中最低）特殊需要可装出0.3MPaPositive Pressure以上 |
||||||||||

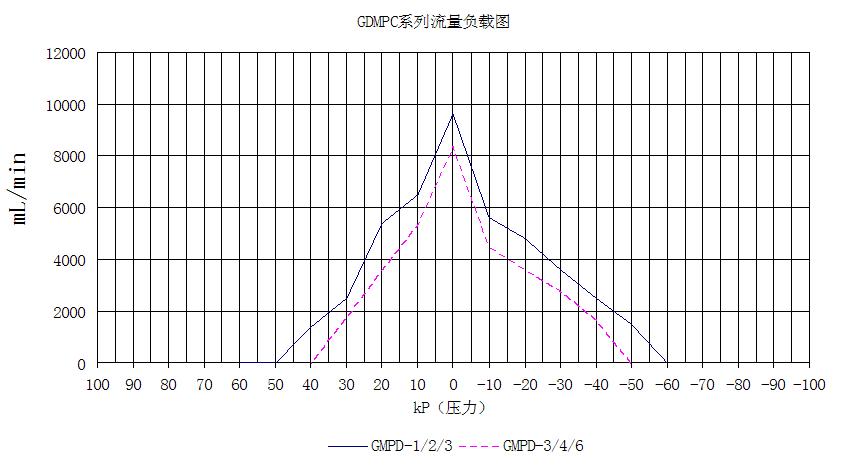

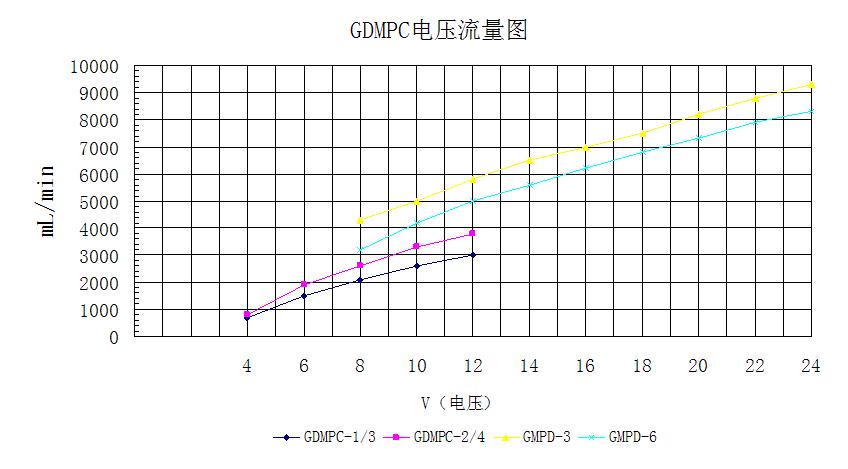

| GDMPC-1/2 | Pressure - Flow Rate Diagram
Votage - Flow Rate Diagram |
100 串联 260 | 吸气 45-55串联Negative Pressure75 | 12/24 | 单路:2×2 双路:2.8 | <0.135 0.08 | 75 | 24×47×51
Details |
 |
|
| GDMPC-3/4 | Pressure - Flow Rate Diagram
Votage - Flow Rate Diagram |
串联 260 | 吸气50-65串联Negative Pressure80 | 12/24 | 单路:2.5×2 双路:3.8 | <0.135 0.08 | 75 | 24×47×51
Details |
Same as above | |
| GDMPD系列微型双头气泵（该泵是为满足用户对Flow Rate稳定性高要求而设计，由于双头泵气路可以相位互补混合，可满足恒流采样的要求，同时一泵可以代替双泵的抽打和采样，使系统控制电路变得简单，降低电路成本，功能更加灵活。气体采样器、按摩器类、医疗仪、美容仪 等。功耗在同类泵中最低） 特殊需要可装出0.01MPaPositive Pressure以上 |
||||||||||

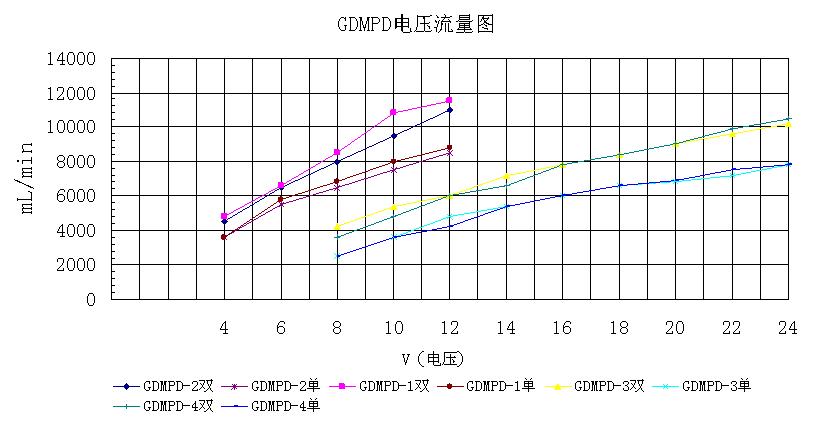

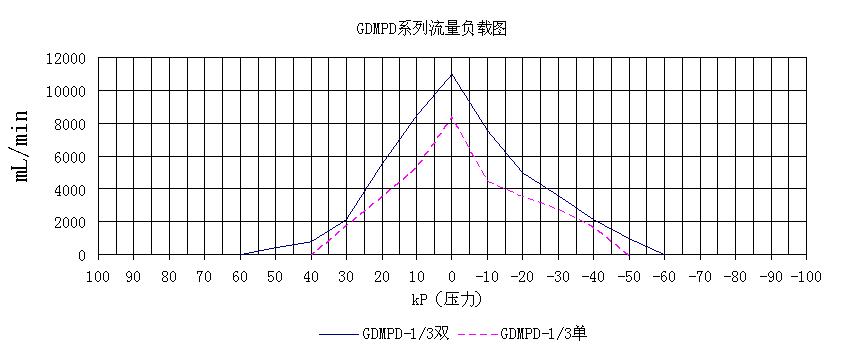

| GDMPD-1/2 | Pressure - Flow Rate Diagram
Votage - Flow Rate Diagram |
100 | 40-50 串联Negative Pressure75 | 12/24 | 单路:7×2 双路:10 | <200 /135 | 107 | 35×48×55.5
Details |
 |
|
| GDMPD-3/4 | Same as above | 100 | 40-60串联Negative Pressure80 | 12/24 | 单路:8×2 双路:11 | <240/135 | 107 | 35×48×55.5
Details |
||
| GDMPD-5/6 | Same as above | 100 | 35-45 | 12/24 | 单路:5×2 双路:8 | <180/115 | 107 | 35×48×55.5
Details |
||
| GDMPE系列微型双头气泵（该泵是为满足用户对Flow Rate稳定性高要求而设计，由于双头泵气路可以相位互补混合，可满足恒流采样的要求，同时一泵可以代替双泵的抽打和采样，使系统控制电路变得简单，降低电路成本，功能更加灵活，电机寿命更长气体采样器、按摩器类、医疗仪、美容仪
等。） 特殊需要可装出0.1MPaPositive Pressure以上 |
||||||||||
| 名称及型号 | 主要性能描述 | Positive Pressure(kPa) | Negative Pressure (kPa) | Voltage(V) | Flow Rate L/min | 空载电流 mA | Weight (g) | 泵的尺寸 安装使用说明 | 外观图 | 备注 |

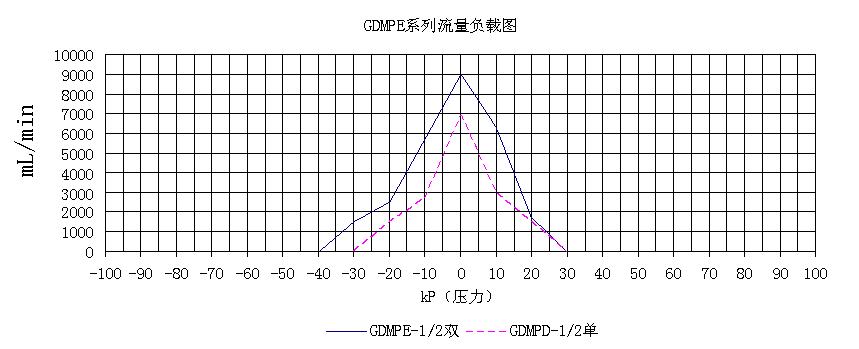

| GDMPE-1/2 小Flow Rate微型双头气泵 | Pressure - Flow Rate Diagram

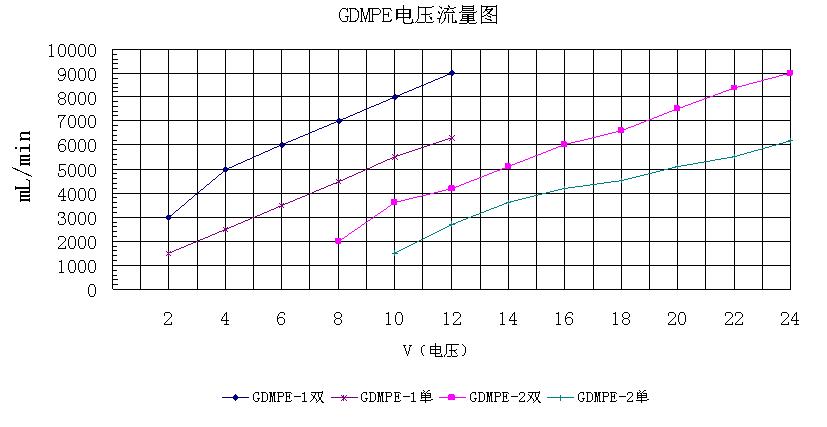

Votage - Flow Rate Diagram |
100 | 40-50串联Negative Pressure75 | 12/24 | 单路：6×2 双路:10 | <180/100 | 175 | 35×48×71.5
Details |
 |
|
| DMP30系列微型双头泵采用
铁氧体和稀土高档全封闭电机 ，Flow Rate稳定,适合粉尘采样、微生物、各种气体采样。大Flow Rate小体积双头泵
特殊需要可装出0.1MPaPositive Pressure以上 |
||||||||||

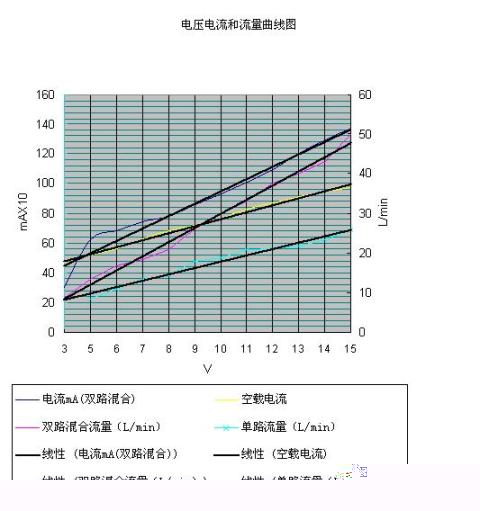

| GDMP30A-1/2/3 | Voltage电流Flow Rate图 | 100 | 20-60 | 12 24 | 单路23×2 双路：25-35 | ≈0.66 ≈0.35 | 618 | 110×56.5×116 Details |
 |
|
| GDMP30B-1 | Voltage电流Flow Rate图 | 100 | 20-60 | 12 | 单路：23×2 双路：35 | ≈0.85 | 663 | 110×56.5×126
Details |
 |
|
| GDMP30B-2 | Voltage电流Flow Rate图 | 100 | 20-60 | 9 | 单路：16×2 双路：28 | ≈0.70 | 663 | 110×56.5×126
Details |
Same as above | |
| GDMP30B-3 | Voltage电流Flow Rate图 | 100 | 20-60 | 6 | 单路：10×2 双路：16 | ≈0.58 | 663 | 110×56.5×126
Details |
Same as above | |
| GDMP30B-4 | Voltage电流Flow Rate图 | 100 | 20-60 | 24 | 单路：25×2 双路：>30 | ≈0.4 | 663 | 110×56.5×126 Details |
Same as above | |
| GDMP50系列微型双头泵采用
铁氧体和稀土高档全封闭电机 ，Flow Rate稳定,适合粉尘采样、微生物采样，各种气体采样，
对双头采样只需要一台泵大Flow Rate小体积双头泵 特殊需要可装出0.1MPaPositive Pressure以上 |
||||||||||
| GDMP50A-1/2/3 | 60 | 20-60 | 6-12 | 单路:35×2 双路:50 | <1.0 堵载电流<1.8 | 759 | 110×70×126
双头采样器只需要一台泵
Details |
 |
||
| GDMP50B-1/2/3 | 60 | 20-60 | 6-12 24定做 | 单路:35×2 双路:50 | <1.0 堵载电流<2.5 | 759 | 110×70×126
Details |
 |
||
| GDMP50B | 60 | 40-60 | 24 | 单路:35×2 双路:50 | 0.260 | 110×70×126
Details |
||||
| GDMP50A | 60 | 20-40 | 6-12 24定做 | 单路：20×2 双路:35 | <1.0 堵载电流<1.8 | 759 | 110×70×126
Details |
|||
| GFMP50-100系列微型双头泵采用稀土高档全封闭电机
，Flow Rate稳定,适合粉尘采样、微生物采样，各种气体采样，
四路混合可组成一台恒流泵，Flow Rate非常稳定大Flow Rate小体积 四头泵 |
||||||||||
| GFMP50-100 | 大Flow Rate四头泵 四路混合Flow Rate非常平稳 | 20-60 | 6-12/24 | 单路:35×2 双路:55×2 四路:80-90 | <1.0 堵载电流<2.0 | 759 | 110×70×126
Details |
 |
缺点是气泵克服阻力小，无负载时Flow Rate很大 | |
