DC FAN

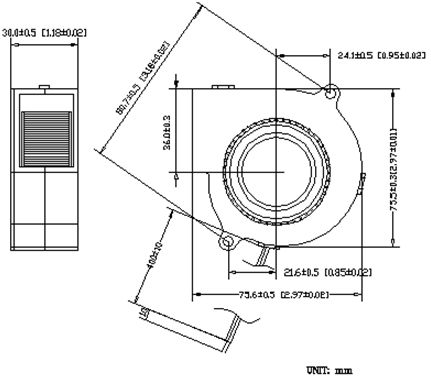

CS7530 SERIES

MODEL	Bearing Type	Rated Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)

7530L05		5	4.0~6.0	0.30	1.50	2400	9.50	7.95	32.50
7530L12	Sleeve	12	7.0~13.2	0.18	2.16
7530L24	Fluid Dynamic	24	14.0~27.6	0.09	2.16
7530M12		12	7.0~13.2	0.20	2.40	2800	11.10	12.05	37.50
7530M24	One Ball One Sleeve	24	14.0~27.6	0.15	3.60
7530H12		12	7.0~13.2	0.25	3.60	3100	12.30	14.76	40.50
7530H24	Two Ball	24	14.0~26.4	0.15	3.60
7530HH12		12	7.0~13.2	0.35	4.20	3600	13.50	15.80	43.50
7530HH24		24	14.0~26.4	0.25	6.00

*function type is optional.
*all readings are typical values at rated voltage.
*specification are subject to change without notice.
