Miniture pump-pumps-China Sourcing

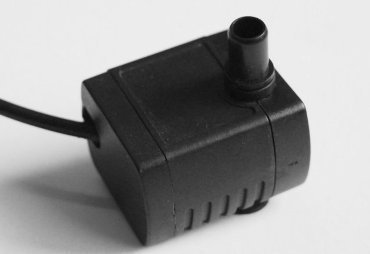

产品名称：submersible pump(dc30)

1.4.2V～12V DC

2. maintenance-free
3. Submersible installation and entirely waterproof
4. low consumption
5.low noise(less than35db)
6. Multi-functional design

7.Working Life: more than 20years
8. Can be customized according to user requirements：

9.Application：our products can be widely used in all kinds of fields, such as computer cooling system, solar fountain, arts and crafts, parts of water heater, plumbing mattresses, swimming pool, foot massage basin, body massage bathtub, car cooling system, fueller, humidifier, air conditioner, medical equipment, and many other cooling and circulation system.

Parameter
Model	specification				Start-up parameter
Model	Voltage (V)	Current (mA)	Flow (L/H)	Head (m)	V(V)	I（mA）
DC30-0404	4.5	100	100	0.40	4.2	60
DC30-0606	6	110	120	0.60	4.2	60
DC30-0707	7	120	155	0.70	4.2	50
DC30-0708	7	130	160	0.80	4.2	50
DC30-0911	9	150	170	1.10	4.2	50
DC30-1215	12	210	210	1.50	4.2	50
DC30-1219	12	340	240	1.90	4.2	50

PS: 1. Maximum liquid temperature:60℃，172F；
