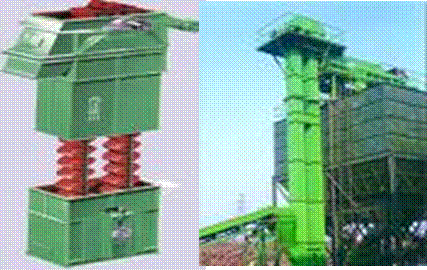

| Product Name: Bucket elevator | ||||||||||||||||||||||
|
||||||||||||||||||||||
| Bucket Elevator is widely used in grain & oil, food, feed, metallurgy, mine, plastic, chemical engineering, building material and medicine industries, etc.Bucket elevator produced by our company mainly consists of HL type bucket elevator, NE type and DTG type bucket elevator. This elevator is used to vertically convey powder, granular and small block materials. It has better sealing performance, large lifting capacity and bigger lifting height, etc. | ||||||||||||||||||||||
| Material: Carbon Steel, Stainless Steel | ||||||||||||||||||||||
| Model | 9/26 | 26/13 | 26/15 | 36/18 | 36/20 | 36/23 | 36/28 | 41/23 | 41/28 | 41/32 | ||||||||||||
| Bucket Dimension (mm) | 90x75 | 130x110 | 150x125 | 180x125 | 200x125 | 230x125 | 280x140 | 230x140 | 280x140 | 320x140 | ||||||||||||
| Lifting Volume | Granule | 5.42 | 11.49 | 15.06 | 25.1 | 27.89 | 37.42 | 51 | 55.82 | 67.8 | 77.5 | |||||||||||
| (m3／h) | Powder | 4.7 | 9.96 | 13.06 | 21.73 | 24.15 | 32.4 | 44.1 | 48.17 | 58.65 | 67 | |||||||||||
| Top Wheel Rotating Speed | Granule | 81 | ||||||||||||||||||||
| （r/min） | Powder | 70 | ||||||||||||||||||||
| Bucket Space(mm) | 350 | 300 | ||||||||||||||||||||
| Lifting Height (m) | 10 to 40 | |||||||||||||||||||||
| Motor（kw） | 2.2 to 22 | |||||||||||||||||||||
| * More Models are available upon the request | ||||||||||||||||||||||
