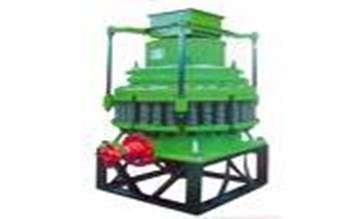

Product Name: Cone Crusher











While Breaker working, the rotation of motor winds one regular place and fastens sports of putting by belt pulley or shaft, coupling, drive shaft and cone being under the compelling movement, and then make the broken taper's broken wall close and leave the firm white wall surface sometimes, make ore assault constantly broken, pinch and crooked function and then to make ore broken. when there r some unbreakable matters and overload for a certain reason , spring insurance system will be used by itself, the arrange ore mouth will be increase, unusual matter will be discharged from broken, if unusual matter block,it also can use system of clears, make the arrange ore increase constantly, and then make the unusual matter out. Under the function of the  spring, the arrange ore mouth will reset automatically, the machine resumes normal. there are three types of breaker-rough, moderate and careful , you can choose to purchase according to your requirement.

Principal Technical Date
Type Weight Power(kw) Diameter of Broken taper Width of the feed opening Max.feed size Adjustable range of discharge opening(mm) capacity(t/h)
(T) (mm) (mm) (mm)
PYB 600 5 30 600 75 65 12~25 20-40
PYD 600 40 35 2~13 12~23
PYB 900 11.2 55 900 135 115 15~50 60-105
PYZ 900 70 60 5~20 50-90
PYD 900 50 50 3`13 20-65
PYB 1200 25 130 1200 170 145 20~50 110-168
PYZ 1200 115 100 8~25 42-135
PYD 1200 60 50 3~15 18-105
PYB 1750 50.2 160 1700 250 215 10~30 280-480
PYZ 1700 215 185 10~30 115-320
PYD 1700 100 85 5~15 75-230
PYB 2200 80 260 2200 350 300 30~60 590-1000
PYZ 280 2200 275 230 10~30 200-580
PYD   2200 130 100 5~15 125-350

* More Models are available upon the request
