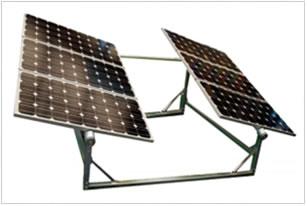

Solar Tracker 1X is a single-axis tracking system designed for ground-mount installations of a variety of solar panels,and it is capable of automatically adjusting the angle of panels according to pre-set configurations .Solar Tracker 1X adopts a slew drive which is powered by a 24V DC or AC motro, enabling the angle of panels to be adjusted within the scope of -60 to 60 degree. With this product in place ,all you have to do is to pre-set the configurations and the system will do the rest .The tracking system calibrates the positioning on daily basis, ensuring the accuracy, enhancing the energy yield, and most importantly, saving the labor costs to a great extent.
- Easy Installation
- Diversified Application
- Universal Compatibility
- Choice Quality
- 10-Year Guarantee
- 100% recyclable, environment friendly
Features |
Installation Site : Open Ground |
Tracker Type : 1-Axis |
Module Type : Framed |
Tracking Mode : 1° Per Time |
Max Area: 20m2 |
Working Wind Speed : <90Km/h |
Max System Weight : 1000Kg |
Max Wind Speed : 140Km/h |
Driver Type : Slew Drive |
Control Methods : PLC |
Adjustable Angle : -60° to 60° |
Life Time : 15 Years-20 Years |
Motor : 3000RPM ( DC or AC 24V) |
Quality Guarantee : 2 Years |
Material : Zinc-galvanized Steel |
Standard : AS / NZS 1170 and other international standards |
