Standard Profiles
Standard Profiles
20 - 4
Type
2020-4
weight(kg/m)
0.46
Area(mm2)
170
Inertia(mm4)
IX
0.65×104
IY
0.65×104
Type

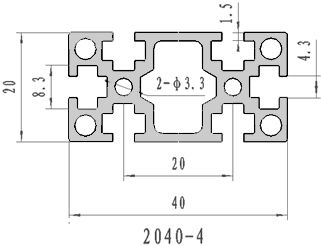

2040-4
weight(kg/m)
0.81
Area(mm2)
300
Inertia(mm4)
IX
1.2×104
IY
4.7×104
Type

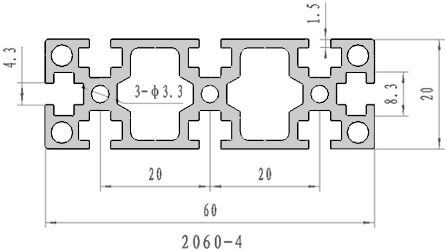

2060-4
weight(kg/m)
1.16
Area(mm2)
429
Inertia(mm4)
IX
1.8×104
IY
14.77×104
Chinese Standard
20-4
15-6
30-6
60-6
20-8
40-8
80-8
45-10
40×5 as marginal aluminum
European Standard
30-8
45-10
40-8
80-8
Accessories
handle、hinge、hook
articula foot wheel basement
cover strips
end cap series
supporting bracket
connection elements
nut、core screw
others
