20 - 8 |
 |
Type |

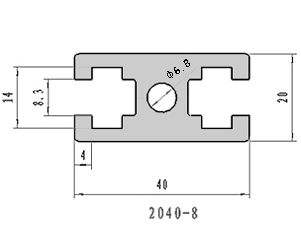

2040-8 |
weight(kg/m) |
1.22 |
Area(mm2) |
451 |
Inertia(mm4) |
IX |
2.26×104 |
IY |
5.04×104 |
|
|
 |
Type |

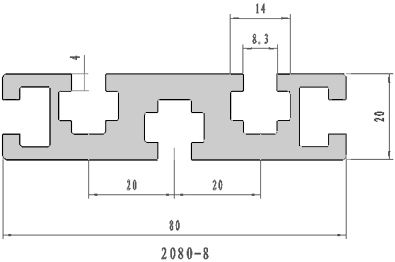

2080-8 |
weight(kg/m) |
2.37 |
Area(mm2) |
878 |
Inertia(mm4) |
IX |
3.99×104 |
IY |
42.35×104 |
|
|

Type |

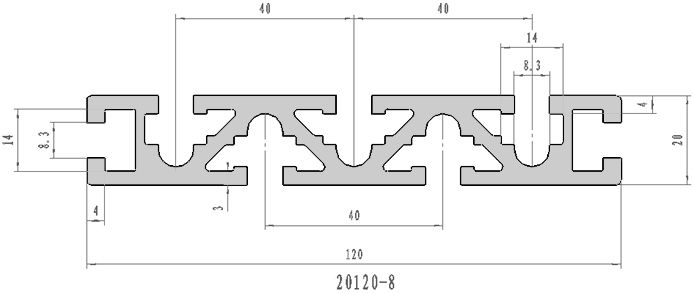

20120-8 |
weight(kg/m) |
2.97 |
Area(mm2) |
1101 |
Inertia(mm4) |
IX |
5.38×104 |
IY |
134.8×104 |
|
|
