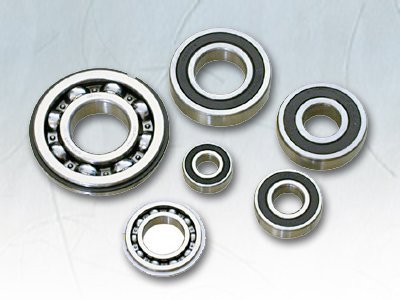

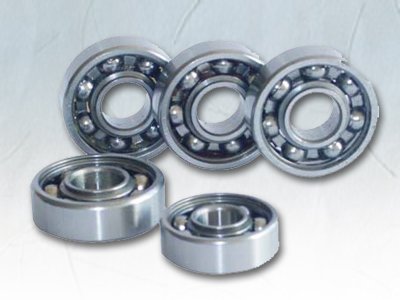

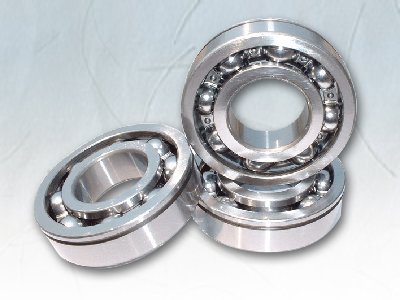

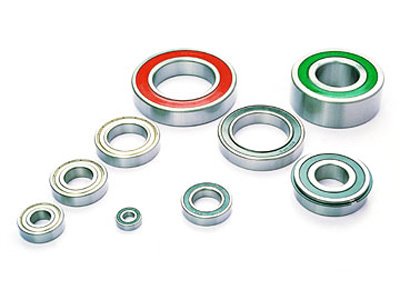

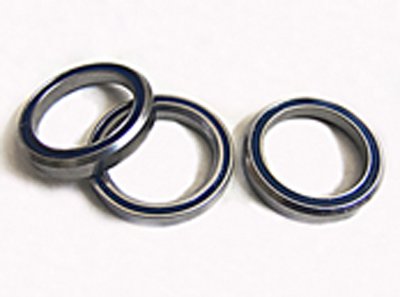

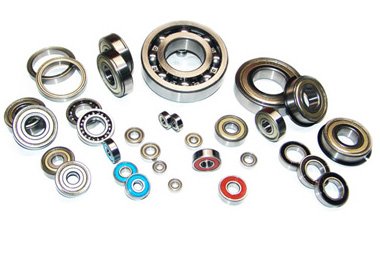

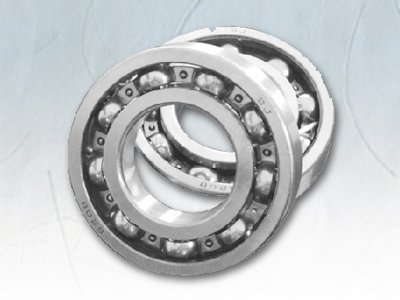

Deep grove ball bearing
Deep groove ball bearings are the most extensive range of applications. Simple structure, easy to get high-precision, suitable for high-speed rotation. Deep groove ball bearings generally use steel stamping cage, but the larger size is not easy for high-speed rotary press forming, or, then the use of turning forming cage. Such bearings are usually with dust cover, with seal, non-contact plastic cap, plastic cap, or just moving contact ring bearings.Deep groove ball bearings can be used for transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery and so on.

6000 Series 6200 Series 6300 Series 6800 Series 6900 Series
16000 Series 62300 Series 62200 Series R Series

   6000 Series bearings   ( back to top )
Type Boundary dimensions(mm) Basic load ratings(N) Limiting speeds(rpm ) Weight(g)
Inner Diameter Outer Diameter Width
dyn. stat. Grease Oil RS
Opeb Close Cr (N) Cor (N) Open Z L
604 4 12 4 4 970 344 41000 49000   2.1
605 5 14 5 5 1080 438 37000 44000   3.5
606 6 17 6 6 1960 731 33000 40000   6
607 7 19 6 6 1870 1058 32000 38000   8
608 8 22 7 7 3310 1350 30000 35000   12
609 9 24 7 7 3330 1410 27000 33000   14
6000 10 26 8 8 4550 1950 27000 32000 17000 19
6001 12 28 8 8 5110 2390 24000 28000 16000 21
6002 15 32 9 9 5590 2850 20000 24000 13000 30
6003 17 35 10 10 6000 3260 18000 22000 12000 39
6004 20 42 12 12 9380 5080 16000 19000 9000 69
60/22 22 44 12 12 10460 5730 15000 18000 80000 74
6005 25 47 12 12 10070 5800 13000 16000 7400 80
60/28 28 52 12 12 11210 6690 12000 14000 6400 98
6006 30 55 13 13 13130 8250 11000 13000 5700 116
6007 35 62 14 14 15950 10320 10000 12000 4800 155
6008 40 68 15 15 16820 11490 8000 10000 4100 190
6009 45 75 16 16 21080 13900 7200 8200 3500 237
6010 50 80 16 16 20670 15450 6400 7800 3000 261
   6200 Series bearings   ( back to top )
Type
Boundary dimensions(mm)
Basic load? ratings(N)
Limiting speeds(rpm )
Weight(g)
Inner Diameter
Outer Diameter
Width
dyn.
stat.
Grease
Oil
RS
Open
Close
Cr
(N)
Cor
(N)
Open Z L
623
3
10
4
4
645
250
48000
56000
/
1.6
624
4
13
5
5
1150
401
40000
47000
/
3.2
625
5
16
5
5
1460
598
35000
42000
/
4.8
626
6
19
6
6
2800
1058
32000
38000
/
8.1
627
7
22
7
7
3310
1350
30000
35000
/
13
628
8
24
8
8
3330
1410
29000
34000
/
17
629
9
26
8
8
4550
1950
25000
31000
/
20
6200
10
30
9
9
5110
2390
23000
28000
16000
32
6201
12
32
10
10
6800
3050
20000
24000
14000
37
6202
15
35
11
11
7600
3680
17000
21000
13000
45
6203
17
40
12
12
9580
4800
16000
19000
10000
66
6204
20
47
14
14
12830
6650
14000
16000
8000
106
62/22
22
50
14
14
12830
6650
12000
15000
7700
117
6205
25
52
15
15
14020
7930
11000
13000
6900
128
62/28
28
58
16
16
16650
9600
10000
12000
6100
171
6206
30
62
16
16
19470
11430
9000
11000
5300
199
62/32
32
65
17
17
23500
13000
9000
10000
6900
-
6207
35
72
17
17
25700
15220
7800
9000
4300
288
6208
40
80
18
18
29520
18140
6700
8000
3600
366
6209
45
85
19
19
31660
20730
6800
7500
3400
398
6210
50
90
20
20
35060
23220
6100
6300
2900
454
   6300 series bearings  ( back to top )
6300 series
Type Boundary dimensions(mm) Basic load  ratings(N) Limiting speeds(rpm )   Weight(g)
Inner Diameter Outer Diameter Width
dyn. stat. Grease Oil RS
Open Close Cr (N) Cor (N) Open Z      L
634 4 16 5 5 1460 598 35000 42000   5.1
635 5 19 6 6 2230 903 32000 38000   8
636 6 22 7 7 2800 1058 32000 38000   8.1
638 8 28 9 9 4550 1950 27000 32000   29
6300 10 35 11 11 7640 3470 21000 25000 14000 53
6301 12 37 12 12 9750 4230 18000 22000 13000 60
6302 15 42 13 13 11420 5420 15000 19000 10000 82
6303 17 47 14 14 12670 6560 14000 17000 9000 115
6304 20 52 15 15 16380 7800 12000 15000 8000 144
63/22 22 56 16 16 14020 7930 11000 13000 7200 176
6305 25 62 17 17 22460 11380 10000 12000 6100 232
63/28 28 68 18 18 25202 13960 9000 11000 5400 284
6306 30 72 19 19 27010 15200 8000 10000 4600 360
6307 35 80 21 21 33350 19220 6800 8000 4000 457
6308 40 90 23 23 40750 24010 5800 7200 3300 630
6309 45 100 25 25 41100 30000 6800 8000 4500 800
   6700 series bearings  ( back to top )
6700 Series
Types Dimension Basic load ratings(N) Limiting speeds(rpm )   Weight(g)
Bore Diameter Out Diameter Width
dyn. stat. Grease Oil   RS
Open Close
Cr (N) Cor (N) Open      Z     L
673 3 6 2 2.5 242 94 58000 69000 / 0.2
674 4 7 2 2.5 265 115 52000 61000 / 0.28
675 5 8 2 2.5 219 89 47000 55000 / 0.32
676 6 10 2.5 3 463 196 41000 49000 / 0.65
677 7 11 2.5 3 454 202 38000 45000 / 0.67
678 8 12 2.5 3.5 449 206 36000 43000 / 0.75
679 9 14 3 4.5 900 450 34000 40000 / 1.4
6700 10 15 3 4 572 304 30000 36000 22000 1.5
6701 12 18 4 4 935 527 27000 33000 18000 3
6702 15 21 4 4 870 499 24000 29000 15000 5
6703 17 23 4 4 930 640 21000 26000 / 6.5
6704 20 27 4 4 1040 558 18000 23000 / /
6705 25 32 4 4 1060 830 16000 20000
   6700 series bearings  ( back to top )
6700 Series
Types Dimension Basic load ratings(N) Limiting speeds(rpm )   Weight(g)
Bore Diameter Out Diameter Width
dyn. stat. Grease Oil   RS
Open Close
Cr (N) Cor (N) Open      Z     L
673 3 6 2 2.5 242 94 58000 69000 / 0.2
674 4 7 2 2.5 265 115 52000 61000 / 0.28
675 5 8 2 2.5 219 89 47000 55000 / 0.32
676 6 10 2.5 3 463 196 41000 49000 / 0.65
677 7 11 2.5 3 454 202 38000 45000 / 0.67
678 8 12 2.5 3.5 449 206 36000 43000 / 0.75
679 9 14 3 4.5 900 450 34000 40000 / 1.4
6700 10 15 3 4 572 304 30000 36000 22000 1.5
6701 12 18 4 4 935 527 27000 33000 18000 3
6702 15 21 4 4 870 499 24000 29000 15000 5
6703 17 23 4 4 930 640 21000 26000 / 6.5
6704 20 27 4 4 1040 558 18000 23000 / /
6705 25 32 4 4 1060 830 16000 20000
   6800 series bearings  ( back to top )
6800 series
Type Boundary dimensions(mm) Basic load  ratings(N) Limiting speeds(rpm ) Weight(g)
Inner Diameter Outer Diameter Width dyn. stat. Grease Oil RS
Open Close
Cr (N) Cor (N) Open  Z  L
684 4 9 2.5 4 539 189 47000 55000 / 0.67
685 5 11 3 5 775 317 41000 49000 / 1.1
686 6 13 3.5 5 1080 438 37000 44000 / 1.9
687 7 14 3.5 5 1170 511 35000 42000 / 2.1
688 8 16 4 5 1600 714 33000 39000 / 3.1
689 9 17 4 5 1600 734 31000 37000 / 3.2
6800 10 19 5 5 1590 760 30000 36000 22000 5
63800 10 19 7   1590 760 29000 34000 20000 7
6801 12 21 5 5 1900 1000 25000 30000 18000 6
6802 15 24 5 5 1960 1260 24000 29000 15000 7
6803 17 26 5 5 2130 1360 22000 26000 13000 8
6804 20 32 7 7 3470 2240 19000 23000 11000 19
6805 25 37 7 7 3660 2640 16000 19000 8000 22
6806 30 42 7 7 4020 3120 13000 16000 8600 26
6807 35 47 7 7 4310 3610 11000 14000 7400 29
6808 40 52 7 7 4420 3890 10000 12000 6500 33
6809 45 58 7 7 4590 4320 9000 10000 5700 40
6810 50 65 7 7 6600 6080 9400 9000 5000 52
   6900 series bearings  ( back to top )
6900 series
Type Boundary dimensions(mm) Basic load  ratings(N) Limiting speeds(rpm ) Weight(g)
Inner Diameter Outer Diameter Width
dyn. stat. Grease Oil RS
Open Close Cr (N) Cor (N) Open   Z   L
694 4 11 4 4 955 344 43000 50000   1.8
695 5 13 4 4 1070 393 38000 45000   2.4
696 6 15 5 5 1460 598 35000 42000   3.8
697 7 17 5 5 1600 714 33000 39000   5.2
698 8 19 6 6 2240 917 31000 37000   7.3
699 9 20 6 6 2470 1088 29000 35000   8.2
6900 10 22 6 6 2690 1270 28000 34000 19000 9
6901 12 24 6 6 2890 1450 25000 30000 17000 11
6902 15 28 7 7 4320 2260 22000 26000 14000 16
6903 17 30 7 7 4310 2310 20000 24000 12000 18
6904 20 37 9 9 6380 3660 17000 21000 10000 36
6905 25 42 9 9 6650 4190 14000 17000 7800 42
6906 30 47 9 9 7200 5040 12000 15000 6400 48
6907 35 55 10 10 10370 7180 10000 13000 5100 74
6908 40 62 12 12 11270 8450 9000 11000 4300 110
6909 45 68 12 12 11580 9120 8000 9000 3500 128
6910 50 72 12 12 11830 9880 6900 8500 3100 132
   R series bearings  ( back to top )
R series
Type Boundary dimensions(mm) Basic load  ratings(N) Limiting speeds(rpm ) Weight(g)
Inner Diameter Outer Diameter Width
dyn. stat. Grease Oil RS
Open Close Cr (N) Cor (N) Open      Z     L
R156 4.763 7.938 2.779 3.175 219 89 47000 56000 0.44
R166 4.763 9.525 3.175 3.175 467 190 44000 53000 0.8
R168 6.35 9.525 3.175 3.175 268 136 40000 49000
R188 6.35 12.7 3.175 4.763 830 370 37000 44000
R2 3.175 9.525 3.97 3.97 645 229 47000 56000 1.3
R3 4.763 12.7 3.97 4.98 1150 401 39000 46000 2.2
R4 6.35 15.875 4.98 4.98 1460 598 34000 41000 4.4
R4A 6.35 19.05 5.557 7.14 1460 598 34000 41000 4.4
R6 9.525 22.225 5.557 7.14 3330 1410 29000 35000 14
R8 12.7 28.575 6.35 7.93 5110 2390 26000 31000 23
R10 15.875 34.925 7.14 8.73 6000 3260 22000 25000 35
R12 19.05 41.275 7.93 11.112 9380 5080 20000 23000 47
R14 22.225 47.625 9.525 12.7 10070 5800 16000 18000 78
R16 25.4 50.8 9.525 12.7 10070 5800 10000 13000 87
R18 28.575 53.975 9.525 12.7 10305 7330
R20 31.75 57.15 9.525 12.7 10305 7420
R22 34.925 63.5 11.1125 14.28 12420 9000
R24 38.1 66.675 11.1125 14.28 13000 9900
   1600 series bearings  ( back to top )
1600 Series
Types Dimension Basic load ratings(N) Limiting speeds(rpm )   Weight(g)
Bore Diameter Out Diameter Width
dyn. stat. Grease Oil   RS
Open Close Cr (N) Cor (N) Open  Z  L
1601 4.7625 17.4625 6.35 7.93 1323 657 33000 40000   4.05
1602 6.35 17.4625 6.35 7.93 1960 731 33000 40000   6.3
1603 7.9375 22.225 7.14 8.73 3310 1350 30000 35000
1604 9.525 22.225 7.14 8.73 3330 1410 27000 33000
1605 7.9375 23.019 7.93 7.93 2088 1026 27000 33000
1606 9.525 23.019 7.93 7.93 2088 1026 27000 33000
1607 11.1125 23.019 7.93 7.93 2690 1270 28000 34000 19000
1614 9.525 28.575 9.525 9.525 1800 1030 23000 28000 16000
1615 11.1125 28.575 9.525 9.525 1800 1030 23000 28000 16000
1616 12.7 28.575 9.525 9.525 5110 2390 24000 28000 16000
1620 11.1125 34.925 11.11 11.11 2700 1593 23000 28000
1621 12.7 34.925 11.11 11.11 2700 1593 23000 28000
1622 14.2875 34.925 11.11 11.11 2700 1593 23000 28000
1623 15.875 34.925 11.11 11.11 2700 1593 23000 28000
1628 15.875 41.275 12.7 12.7 3320 2043 16000 19000
1630 19.05 41.275 12.7 12.7 3320 2043 16000 19000
1633 15.875 44.45 12.7 12.7 3320 2043 16000 19000
1635 19.05 44.45 12.7 12.7 3320 2043 16000 19000
1638 19.05 50.8 14.28 14.28 4950 3190
1640 22.225 50.8 14.28 14.28 4950 3190
1647 25.4 50.8 14.28 14.28 4950 3190
1652 28.575 63.5 15.87 15.87 5877 3856
1654 31.75 63.5 15.87 15.87 5877 3856
1657 31.75 65.0875 17.46 17.46
1658 33.3375 65.0875 17.46 17.46
16001 12 28 7 / 5110 2390 24000 28000 / 19
16002 15 32 8 / 5590 2850 20000 24000 / 25
16003 17 35 8 / 6000 3260 18000 22000 12000 32
16004 20 42 8 / 8370 4520 16000 19000 9000 51
16005 25 47 8 / 6940 4600 13000 16000 7400 60
16006 30 55 9 / 11250 7350 11000 13000 5700 91
   MR series bearings  ( back to top )
MR Series
Types
Dimension
Basic load ratings(N)
Limiting speeds(rpm )

Weight(g)
Bore Diameter
Out Diameter
Width
dyn.
stat.
Grease
Oil

RS
Open
Close
Cr (N)
Cor (N)
Open      Z     L
MR84
4
8
2
3
380
140
50000
59000
0.38
MR104
4
10
3
4
539
189
44000
53000
1
MR105
5
10
3
4
539
194
43000
50000
0.88
MR126
6
12
3
4
774
326
38000
45000
1.3
MR137
7
13
3
4
770
330
36000
43000
1.4
MR148
8
14
3.5
4
760
349
34000
41000
1.8
MR2010
10
20
6
6
1590
527
30000
35000
21000
7.5
   TEX series bearings  ( back to top )
]
TEX Series Dimension Steel Ball   Basic load ratings(N)   Weight(g)
Cr (N) Cor (N)
Bore Diameter Out Diameter Width Assemble Chamfer
TEX Series
TEX3 27.2 38 6.1/6.4 35X45/30.2X45 18-Ø3.175 2750 2050 17
TEX5 30.2 41 6.1/6.3 38X45/33.2X45 19-Ø3.175 2870 2160 18.5
TEX5-41.6
41.6 6.1/6.3 38X45/33.2X45 19-Ø3.175 4020 2350 19
TEX5W6.5
41 6.3/6.5 38X45/32.9X36 19-Ø3.175 4020 2350 18.5
TEX7 44.8 7.4/7.9 35.2X45/39.8X45 29-Ø3.969 5980 5230 33
TEX8m2 41 57 7 45X45/53X45 38-Ø3.969 6750 6730 -
30427 30 42 7/6.5 33X45 19-Ø3.175 - - -
304610 46.4 10 34.6X60/0.5/0.7 18-Ø3.5 - - -
301541 30.15 41 5.8/7 33.2X45/36X45 25Ø3.175 - - -
301544 44 6/8 34.5X45/37X45 25-Ø3.175 - - -
30283 30.2 38 6.5 31.8X45/35.6X45 24-Ø2.381 - - -
30458 30.2 44.6 8 34.6X45/40X45 18-Ø3.5 - - -
305418 30.5 41.8 6/8 34.5X45/35.8X45 25-Ø3.175 - - -
3969508m1 39.69 50.8 7.142 0.5 43-Ø3.175 - - -
MH-P03m2 30.2 41 6.5 33.15X45/38X45 34-Ø3.175 - - -
MH-P14 33.34 44.45 7.14/6.34 35.65X30/1.1 37-Ø3.175 - - -
S305427 30.5 42 7 1X45 19-Ø3.175- - -


Copyright @ 2003-2010 Shanghai Sourcing Ltd. All rights reserved.
