Needle roller bearing
Needle bearings equipped with a fine and long rollers, the radial structure is compact, therefore, when the diameter size and load bearing capacity the same as the other types, outer diameter is the smallest, in particular the installation of the application with the radial size of the supporting structure restricted. According to the use of different occasions, can use the non-inner needle bearing or use needle and cage assembly.
   Drawn up needle roller bearing   ( back to top )
Drawn Cup Needle Roller Bearings are precision sheet steel extrusion, the outer ring of 400-600 degrees by 1.3 degrees high temperature carburization of high toughness Cage guided needle group G2 group, and its radial cross-section very small, and with the overall load capacity, especially suitable for use in the economic category of a large number of products. Drawn Cup Needle Roller Bearings with outer ring of the bearing box used surplus with the rest, no axial fixtures. Even in the high-speed, high load conditions, but also to ensure that their flexible working performance. Drawn Cup Needle Roller Bearings advanced closure principle is that the body fat volume, and the long term without lubrication, as a result of high temperature lubrication intervals, thus ensuring its long-term worry-free operation. Drawn Cup Needle Roller Bearings in general do not have inner circle, because of its design will normally be a reasonable choice of IR-type inner Drawn Cup Needle Roller Bearings Bearings are divided into two ends of perforation (HK-type) and closed end bearings (BK-type). Drawn Cup Needle Roller Bearings Bearing seal one end of a closed structure, applicable to shaft end and can withstand small Axial momentum.


Shaft Diameter Bearing Designation and Mass Approx Boudary Dimensions Basic Load Rating Limiting Speed
Open Mass Closed Mass FW D C Cr Dynamic Cor Static Oil
mm Current Original Code g Current Original Code g mm N rpm
4 HK0408TN 37941/4 1.6 BK0408TN 35941/4 1.8 4 8 8 1540 1070 40000
5 HK0509 47941/5 2 BK0509 45941/5 2.1 5 9 9 2200 1790 36000
6 HK0607 27941/6 1.8 - - - 6 10 7 1600 1400 30000
HK0608 37941/6 2.1 BK0608 35941/6 2.2 6 10 8 1830 1550 32000
HK0609 47941/6 2.2 BK0609 45941/6 2.6 6 10 98 2650 2400 30000
HK061208 2.5 - - - 6 12 8 2230 2010 33000
7 HK0709 47941/7 2.3 BK0709 45941/7 2.9 7 11 9 2800 2150 27000
8 HK0808 37941/8 2.7 BK0808 35941/8 3 8 12 8 2550 2400 21000
HK0810 57941/8 3 BK0810 55941/8 3.4 8 12 10 3700 3450 21000
HK081410 27942/8 5.35 BK081410 25941/8 5.8 8 14 10 3800 3950 25000
HK081412 37942/8 6.6 - - - 8 14 12 4100 4320 25000
9 HK0908 37941/9 3 BK0908 35941/9 3.4 9 13 8 3650 4050 25000
HK0910 57941/9 4 BK0910 55941/9 4.3 9 13 10 4050 4250 25000
HK0912 67941/9 4.6 BK0912 65941/9 4.9 9 13 12 5000 6000 25000
HK091510 27942/9 5.6 - - - 9 15 10 5300 6300 25000
10 HK1010 57941/10 4.1 BK1010 55941/10 4.3 10 14 10 3900 4800 19000
HK1012 67941/10 4.8 BK1012 65941/10 5 10 14 12 5000 6300 19000
HK1015 - 6 BK1015 - 6.2 10 14 15 6700 7800 19000
12 HK1208 37941/12 3.3 - - - 12 16 8 7200 8000 19000
HK1210 57941/12 4.6 BK1210 55941/12 5.2 12 16 10 4150 5800 19000
HK1212 67941/12 5.6 BK1212 65941/12 6.2 12 16 12 3800 5100 15000
13 HK1312 - 8.9 BK1312 - 11.2 13 19 12 6200 7100 17000
14 HK1410 27941/14 8.3 BK1412 35941/14 12.1 14 20 10 6700 7000 16000
HK1412 37941/14 10.5 - - 12.2 14 20 12 6800 7500 16000
HK1416 57941/14 13.9 - - 12.5 14 20 16 7300 9000 14000
15 HK152012 7941/15 8.4 - - - 15 20 12 5800 6000 14000
HK152016 7942/15 11.4 - - - 15 20 16 6000 6200 14000
HK152020 7943/15 13.8 - - - 15 20 20 6100 6400 14000
HK1512 37941/15 11.1 BK1512 35941/15 12.7 15 21 12 7000 8400 14000
HK1514 47941/15 12.7 - - 12.9 15 21 14 8500 10400 13000
HK1515 - 14.2 - - 13 15 21 15 9100 11400 13000
HK1516 57941/15 15 BK1516 55941/15 16.5 15 21 16 9800 11400 14000
HK1522 SZ-439 20.4 BK1522 - 22 15 21 22 10400 16500 14000
HK152212 7948/15 12.5 - - - 15 22 12 14300 18400 13000
16 HK162109 - 7.5 - - - 16 21 9 4400 5600 12000
HK1612 37941/16 11.7 BK1612 35941/16 13.8 16 22 12 7100 9200 14000
HK1614 47941/16 14.4 - - - 16 22 14 8800 9900 12000
HK1616 57941/16 15.8 BK1616 55941/16 17.6 16 22 16 10100 14300 14000
HK1617 SZ-435 18 - - - 16 22 17 12900 17200 12000
HK1622 87941/16 21.7 BK1622 85941/16 23.4 16 22 22 11100 17400 14000
17 HK1712 37941/17 12.2 BK1712 35941/17 14.5 17 23 12 6900 9300 13000
HK1714 7941/17 14 - - - 17 23 14 6800 10200 10000
HK1716 57941/17 15.9 - - - 17 23 16 8500 12500 10000
HK1718 7942/17 19 - - - 17 23 18 9500 10600 10000
18 HK1812 37941/18 13.1 BK1812 35941/18 14.9 18 24 12 7100 9900 12000
HK1816 57941/18 17.5 BK1816 55941/18 19.9 18 24 16 10600 15300 12000
19 HK192716 TA1916 23 - - - 19 27 16 8100 9500 10500
20 HK2010 27941/20 11.8 BK2010 25941/20 14 20 26 10 5900 7200 10000
HK2012 37941/20 14.4 BK2012 35941/20 16.7 20 26 12 7600 10100 10000
HK2014 47941/20 15.7 - - - 20 26 14 9700 18100 9000
HK2016 57941/20 19.3 BK2016 55941/20 22.3 20 26 16 11700 29100 10000
HK2018 67941/20 23.3 - - - 20 26 18 7900 12800 9000
HK2020 79421/20 24.1 BK2020 75941/20 27.1 20 26 20 13700 24000 10000
HK2025 7943/20 28 - - - 20 26 25 9100 14800 9900
HK2030 - 34.7 BK2030 - 37.4 20 26 30 21800 40000 10100
HK202816 47942/20 28.5 - - - 20 28 16 29600 49800 9900
22 HK2210 27941/22 12.3 - - - 22 28 10 7200 9500 10010
HK2212 37941/22 15 BK2212 35941/22 18.1 22 28 12 8100 10400 10010
HK2216 57941/22 20.9 BK2216 55941/22 24.3 22 28 16 11400 18100 10010
HK2220 77941/22 26.2 BK2220 75941/22 29.9 22 28 20 14500 25000 10010
HK2230 - 32 - - - 22 28 30 17500 30400 9000
25 HK2512 27941/25 20 BK2512 25941/25 23.2 25 32 12 10000 14200 9000
HK2514 37941/25 21.9 - - - 25 32 14 13600 14800 9000
HK2516 7941/25 27.3 BK2516 7941/25 31 25 32 16 13600 20000 9000
HK2518 57941/25 28.2 - - - 25 32 18 17500 25800 9000
HK2520 67941/25 34.1 BK2520 65941/25 38.7 25 32 20 17900 30000 9000
HK2525 7943/25 40 - - - 25 32 25 22200 36700 9000
HK2526 - 44.8 BK2526 - 49 25 32 26 22500 42000 9000
HK2538 87941/25 64.7 BK2538 85941/25 69 25 32 38 30000 58000 9000
HK253520 57942/25 44.9 - - - 28 35 20 36100 78650 9000
28 HK2816 47941/28 30.1 BK2816 45941/28 34.1 28 35 16 15400 22500 8700
HK2818 57941/28 31.7 - - - 28 35 18 18500 29300 8700
HK2820 67941/28 37.6 BK2820 65941/28 43 30 35 20 18900 32000 8700
30 HK3012 27941/30 24 BK3012 25941/30 27.9 30 37 12 10100 16200 8100
HK3016 47941/30 32 BK3016 45941/30 37.1 30 37 16 15200 27000 8100
HK3018 57941/30 33.6 - - - 30 37 18 19500 31500 8100
HK3020 67941/30 40.1 BK3020 65941/30 46.5 30 37 20 19700 33500 8100
HK3026 - 52.9 BK3026 - 59.4 30 37 26 24000 50000 8100
HK3038 - 76.1 BK3038 - 82.5 30 37 38 32500 74000 8100
HK303812 27941/30 28 - - - 30 38 12 38100 80000 8100
HK303816 7941/30 32.7 - - - 30 38 16 39000 82000 8100
HK303824 7942/30 49 - - - 30 38 24 39910 88800 8100
HK303832 7943/30 69 - - - 30 38 32 38890 88700 8100
32 HK3224 77941/32 50.7 - - - 32 39 24 25500 52000 7300
HK3232 97941/32 66.4 - - - 32 39 32 22600 54300 7100
HK324032 7943/32 72.7 - - - 32 40 32 27990 59890 7100
35 HK3512 59741/35 27.7 BK3512 25941/35 32.9 35 42 12 12100 19300 7100
HK3516 47941/35 36.9 BK3516 45941/35 43.8 35 42 16 15700 27500 7100
HK3520 67941/35 46.1 BK3520 65941/35 54.8 35 42 20 20800 41000 7100
HK354316 7941/35 37 - - - 35 43 16 24200 47100 6200
HK354325 7942/35 60.5 - - - 35 43 25 24440 48500 6200
HK354332 7943/35 80 - - - 35 43 32 24870 48880 6200
38 HK384830 - 102 - - - 38 48 30 16100 24100 6300
40 HK4012 27941/40 31.1 BK4012 25941/40 38.2 40 47 12 14400 24300 6300
HK4016 47941/40 41.4 BK4015 45941/40 51 40 47 16 20000 38500 6300
HK4020 67941/40 51.8 BK4020 65941/40 62 40 47 20 25500 52000 6300
HK405032 7942/40 114.3 - - - 40 50 32 23000 42000 6000
HK405038 7943/40 130.8 - - - 40 50 38 24100 43000 6000
45 HK4512 27941/45 34.8 BK4512 25941/45 45 45 52 12 12900 22500 5800
HK4516 47941/45 46.2 BK4516 45941/45 56 45 52 16 19300 38000 5800
HK4520 67941/45 56 BK4520 65941/45 72 45 52 20 22000 51000 5800
HK5012 27941/50 44.2 - - - 50 58 12 23600 57200 5300
HK5020 47941/50 72 BK5020 55941/50 87.3 50 58 20 28000 60000 5300
HK5025 7943/50 90.1 BK5025 5943/50 109 50 58 25 34500 80000 5300
55 HK5520 57941/55 78 BK5020 - 93.8 55 63 20 29500 59900 4600
HK5525 77941/55 109 - 55941/55 - 55 63 25 33500 69980 4600
HK5528 87941/55 111 BK5528 84941/60 132 55 63 28 39090 98000 4600
60 HK6012 - 49.2 BK6012 - 77 60 68 12 12400 29000 4100
HK6020 57941/60 86 BK6020 55941/60 105 60 68 20 30500 72000 4100

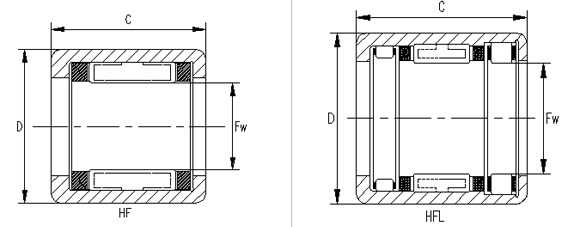

   Single direction needle roller bearing   ( back to top )

According to the different needs of internal and external changes in a flexible structure, its outer ring is made from alloy steel precision stamping, after special treatment to enhance the wear resistance of the load-bearing capacity is extremely, retainer to guide the use of high toughness PA66 2m needle to obtain a better precision bearing steel and the rotating performance and maximum torque transmission.

The design allows the perfect one-way bearing | needle bearing one-way | one-way clutch needle in -30 to 120 temperature range of long-term operation. The advantage is that when one-way bearing | needle bearing one-way | one-way clutch needle side of the direction of the arrow shaft rotates relative self-locking clutch.


Shaft Diameter Clutch Designation     Approx Mass Borndary Dimensions Torgue Ma Limiting Speed
  Fw D C   Rotating Shaft Min-1 Rotatng Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm
HF
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000
4 HF0406KF -- 1 4 8 6 0.34 34000 8000
HF0406KFR -- 1 4 8 6 0.1 34000 8000
6 HF0608KF   2.8 6 10 8 1.5 20000 11000
HF0612KF HF0612 3 6 10 12 1.76 23000 13000
HF0612KFR HF0612 3 6 10 12 1.76 23000 13000
- HF061210 3.5 6 12 10 3 20000 13000
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000
HF0812KFR HF0812 3.5 8 12 12 4 17000 12000
-- HF061210 3.2 8 12 10 3 16000 12000
-- HF081410 3.6 8 14 10 4.6 15000 11000
-- HF081610 4.1 8 16 10 5.5 15000 11000
-- HF081412 4 8 14 12 5 16000 12000
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000
HF1012KFR HF1012 4 10 14 12 1.5 14000 11000
12 -- HF1216 11 12 18 16 12.2 11000 8000
14 -- HF1416 13 14 20 16 17.3 9500 8000
16 -- HF1616 14 16 22 16 20.5 8500 7500
18 -- HF1816 16 18 24 16 24.1 7500 7500
20 -- HF2016 17 20 26 16 28.5 7000 6500
25 -- HF2520 30 25 32 20 66 5500 5500
30 -- HF3020 36 30 37 20 90 4500 4500
35 -- HF3520 40 35 42 20 121 3900 3900
HFL
3 HFL0308 -- 3 3 3.6 8 1 -- --
4 HFL0408 -- 3.5 4 8 8 1.5 -- --
6 HFL0615KF HFL0615 4 6 10 15 1.76 23000 13000
HFL0615KFR HFL0615 4 6 10 15 0.5 23000 13000
-- HFL061012 5 6 10 12 -- 21000 12000
8 -- HFL081212 6 8 12 12 -- 20000 12000
-- HFL081412 7 8 14 12 -- 19000 12000
HFL0822KF HFL0822 7 8 12 22 3.15 17000 12000
HFL0822KFR HFL0822 7 8 12 22 1 17000 12000
10 HFL1022KF HFL1022 8 10 14 22 5.3 14000 11000
HFL1022KFR HFL1022 8 10 14 22 1.5 14000 11000
12 -- HFL1226 18 12 18 26 12.2 11000 8000
14 -- HFL1426 20 14 20 26 17.3 9500 8000
16 -- HFL1626 22 16 22 26 20.5 8500 7500
18 -- HFL1826 25 18 24 26 24.1 7500 7500
20 -- HFL2026 27 20 26 26 28.5 7000 6500
25 -- HFL2530 44 25 32 30 66 5500 5500
30 -- HFL3030 51 30 37 30 90 4500 4500
35 -- HFL3530 58 35 42 30 121 3900 3900
FC,FCB   RC,RCB
Bearing Designation Mass Approx Designation   Bearing Designation Mass Approx Designation
Fw D C Torgue Ma   Fw D C Torgue Ma
g mm Nm   g mm Nm
FC4K 1 4 8 6 0.34   RC040708 3.5 6.35 11.112 12.7 1.9
FC6 3 6 10 12 1.76   RC040708-FS 3.5 6.35 11.112 12.7 1.9
FC6K 3 6 10 12 1.76   RC061008 4.7 9.525 15.875 12.7 4.83
FC8 4 8 14 12 5.3   RC061008-FC 4.7 9.525 15.875 12.7 4.83
FCL8K 3.5 8 12 12 5   RC081208 9.2 12.7 19.05 12.7 7.9
FC10 4.8 10 16 12 6   RC081208-FS 9.2 12.7 19.05 12.7 7.9
FCL10K 4 10 14 12 5.3   RC101410 14.5 15.875 22.225 15.88 15.4
FC12 11 12 18 16 12.2   RC101410-FC 14.5 15.875 22.225 15.88 15.4
FC14K 13 14 20 16 17.3   RC121610 17 19.05 25.4 15.88 20.9
FC16 14 16 22 16 20.5   RC121610-FS 17 19.05 25.4 15.88 20.9
FC20 17 20 26 16 28.5   RC162110 16.2 25.4 33.338 15.88 45
FC25 30 25 32 20 66   RC162110-FC 16.2 25.4 33.338 15.88 45
FC30 36 30 37 20 90   RCB061014 12 9.525 15.875 22.22 4.83
FC35 40 35 42 20 121   RCB061014-FS 12 9.525 15.875 22.22 4.83
FCB8 10 14 14 20 5   RCB081214 16 12.7 19.05 22.22 7.9
FCB10 15 16 16 20 10   RCB081214-FC 16 12.7 19.05 22.22 7.9
FCB12 18 18 18 26 12.2   RCB101416 21.3 15.875 22.225 25.4 15.4
FCB16 22 22 22 26 20.5   RCB101416-FS 21.3 15.875 22.225 25.4 15.4
FCB20 27 26 26 26 28.5   RCB121616 26.5 19.05 25.4 25.4 20.9
FCB25 44 32 32 30 66   RCB121616-FC 26.5 19.05 25.4 25.4 20.9
FCB30 51 37 37 30 90   RCB162117 44.8 25.4 33.338 26.99 45
FCB35 58 42 42 30 121   RCB162117-FS 44.8 25.4 33.338 26.99 45

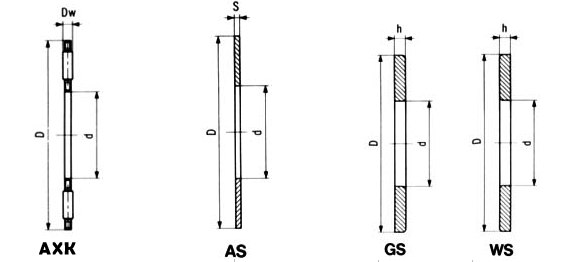

   Plane thrust needle roller bearing  ( back to top )

Shaft Diameter

Bearing Designation

Boudary Dimensions

Basic Load Rating

Limiting Speed

Besring
Washer

Shaft Loc.Washer

Washer Shaft

d

D

Dw

Cr Dynamic

Cor Static

Oil

mm

mm

N

rpm

4

AXK0414TN

4

14

2

4380

7500

18000

AS 0414

-

-

5

AXK0515TN

5

15

2

4680

9100

17000

AS 0515

-

-

6

AXK0619TN

6

19

2

6740

15400

16000

AS 0619

-

-

8

AXK0821TN

8

21

2

7750

19000

15000

AS 0821

-

-

10

AXK1024

10

24

2

9150

24500

14000

AS 1024

-

-

12

AXK1226

12

26

2

9860

28600

13000

AS 1226

-

-

15

AXK1528

15

28

2

11200

35500

11000

AS 1528

GS 811 02

WS 811 02

17

AXK1730

17

30

2

11800

38600

10000

AS 1730

GS 811 03

WS 811 03

20

AXK2035

20

35

2

12900

45600

8500

AS 2035

GS 811 04

WS 811 04

25

AXK2542

25

42

2

13800

67800

7000

AS 3542

GS 811 05

WS 811 05

30

AXK3047

30

47

2

15600

69500

6000

AS 3047

GS 811 06

WS 811 06

35

AXK3552

35

52

2

16900

80100

5500

AS 3552

GS 811 07

WS 811 07

40

AXK4060

40

60

3

27500

113500

4700

AS 4060

GS 811 08

WS 811 08

45

AXK4565

45

65

3

29050

127600

4300

AS 4565

GS 811 09

WS 811 09

50

AXK5070

50

70

3

31500

138000

3900

AS 5070

GS 811 10

WS 811 10

55

AXK5578

55

78

3

37400

185000

3500

AS 5578

GS 811 11

WS 811 11

60

AXK6085

60

85

3

43900

232500

3200

AS 6085

GS 811 12

WS 811 12

65

AXK6590

65

90

3

45800

254600

3000

AS 6590

GS 811 13

WS 811 13

70

AXK7095

70

95

4

53600

254400

2900

AS 7095

GS 811 14

WS 811 14

75

AXK75100

75

100

4

54500

264600

2700

AS 75100

GS 811 15

WS 811 15

80

AXK80105

80

105

4

55600

278500

2600

AS 80105

GS 811 16

WS 811 16

85

AXK85110

85

110

4

57500

28800

2400

AS 85110

GS 811 17

WS 811 17

90

AXK90120

90

120

4

72500

401000

2300

AS 90120

GS 811 18

WS 811 18

100

AXK100135

100

135

4

90500

559500

2000

AS 100135

GS 811 20

WS 811 20

110

AXK110145

110

145

4

96500

617500

1900

AS 110145

GS 811 22

WS 811 22

120

AXK120155

120

155

4

101500

679600

1700

AS 120155

GS 811 24

WS 811 24

130

AXK130170

130

170

5

132400

838900

1600

AS 130170

GS 811 28

WS 811 26

140

AXK140180

140

180

5

137200

899600

1500

AS 140180

GS 811 30

WS 811 28

150

AXK150190

150

190

5

142800

959000

1400

AS 150190

GS 811 32

WS 811 30

160

AXK160200

160

200

5

147600

1015000

1300

AS 160200

GS 811 32

WS 811 32

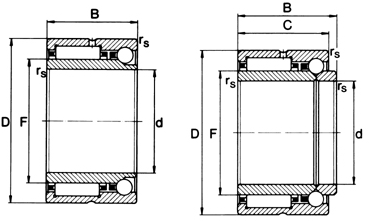

   Combined needle roller bearing  ( back to top )
Shaft Diamete Bearing Designation Mass

Borndary Dimensions

Basic Load Rating

Limiting Speed

d

F

D

B

Radial

Axial



Dyn. Cr

Stat. Cor

Dyn. Ca

Stat. Coa

Oil

mm



g

mm

N

rpm
NKIA

12

NKIA 5901

40

12

16

24

16

5047

6352

2010

1620

23000

15

NKIA 5902

50

15

20

28

18

8400

9600

2140

2070

21000

17

NKIA 5903

56

17

22

30

18

8800

10600

2340

2370

20000

20

NKIA 5904

103

20

25

37

23

18000

21000

3140

3900

17000

22

NKIA 59/22

118

22

28

39

23

19500

25500

3550

4200

15000

25

NKIA 5905

130

25

30

42

23

20500

27000

3600

4800

14000

30

NKIA 5906

147

30

35

47

23

22500

31500

4050

5400

13000

35

NKIA 5907

243

35

42

55

27

28000

46000

5700

7500

11000

40

NKIA 5908

315

40

48

62

30

39000

55050

6000

8900

9000

45

NKIA 5909

375

45

52

68

30

40500

68900

6300

10500

8500

50

NKIA 5910

380

50

58

72

30

42500

75000

6890

11800

8000

55

NKIA 5911

550

55

63

80

34

50800

96000

8050

14500

7000

60

NKIA 5912

590

60

68

85

34

56400

98000

9500

15800

6500

65

NKIA 5913

635

65

72

90

34

57500

106000

9800

17000

6500

70

NKIA 5914

980

70

80

100

40

79050

152000

11800

22500

5500

NKIB

12

NKIB 5901

43

12

16

24

16

7600

8300

2160

1940

23000

15

NKIB 5902

52

15

20

28

18

10600

13600

2340

2370

21000

17

NKIB 5903

58

17

22

30

18

11000

14600

2500

2750

20000

20

NKIB 5904

107

20

25

37

23

21000

25500

3950

4200

17000

22

NKIB 59/22

122

22

28

39

23

22800

29500

4250

4850

15000

25

NKIB 5905

134

25

30

42

23

23600

31500

4350

5200

14000

30

NKIB 5906

151

30

35

47

23

25000

35500

4750

6300

13000

35

NKIB 5907

247

35

42

55

27

31500

50000

6000

8400

11000

40

NKIB 5908

320

40

48

62

30

43000

67000

7400

10900

9000

45

NKIB 5909

380

45

52

68

30

45000

73000

7700

12000

8500

50

NKIB 5910

385

50

58

72

30

47000

80000

8100

13700

8000

55

NKIB 5911

555

55

63

80

34

58000

100000

9700

16600

7000

60

NKIB 5912

595

60

68

85

34

60000

108000

10000

17900

6500

65

NKIB 5913

640

65

72

90

34

61000

112000

10300

19300

6500

70

NKIB 5914

985

70

80

100

40

84000

156000

13500

25000

5500

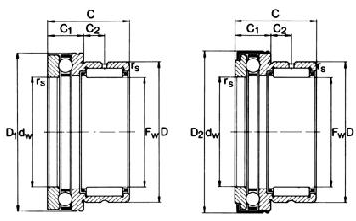

NKX NKX...Z

Shaft Diameter

Bearing Designation

Boudary Dimensions

Basic Load Rating

Limiting Speed

Without fixed cages

With fixed cages

Radial

Axial

mm

FW

D

C

C1

Co

Cor

Co

Cor

mm

N

rpm

10

NKX 10TN

NKX 10ZTN

10

19

23

9

6200

7800

10000

12100

12000

12

NKX 12

NKX 12 Z

12

21

23

9

9000

11000

10300

13300

11000

15

NKX 15

NKX 15 Z

15

24

23

9

10700

12700

10500

14500

9500

17

NKX 17

NKX 17 Z

17

26

25

9

11900

15000

10800

15700

8500

20

NKX 20

NKX 20 Z

20

30

30

10

16400

23800

14300

21400

7500

25

NKX 25

NKX 25 Z

25

37

30

11

18800

30500

19600

32000

6000

30

NKX 30

NKX 30 Z

30

42

30

11

22600

36000

20400

36500

5000

35

NKX 35

NKX 35 Z

35

47

30

12

24300

41500

21200

41000

4600

40

NKX 40

NKX 40 Z

40

52

32

13

26000

47000

27000

54000

4000

45

NKX 45

NKX 45 Z

45

58

32

14

27500

53000

28000

60000

3600

50

NKX 50

NKX 50 Z

50

62

35

14

38000

74000

29000

65000

3300

60

NKX 60

NKX 60 Z

60

72

40

17

42000

90000

41500

97000

2800

70

NKX 70

NKX 70 Z

70

85

40

18

44500

92000

43000

110000

2400
   Combined needle roller bearing  ( back to top )
Shaft Diamete Bearing Designation Mass

Borndary Dimensions

Basic Load Rating

Limiting Speed

d

F

D

B

Radial

Axial



Dyn. Cr

Stat. Cor

Dyn. Ca

Stat. Coa

Oil

mm



g

mm

N

rpm
NKIA

12

NKIA 5901

40

12

16

24

16

5047

6352

2010

1620

23000

15

NKIA 5902

50

15

20

28

18

8400

9600

2140

2070

21000

17

NKIA 5903

56

17

22

30

18

8800

10600

2340

2370

20000

20

NKIA 5904

103

20

25

37

23

18000

21000

3140

3900

17000

22

NKIA 59/22

118

22

28

39

23

19500

25500

3550

4200

15000

25

NKIA 5905

130

25

30

42

23

20500

27000

3600

4800

14000

30

NKIA 5906

147

30

35

47

23

22500

31500

4050

5400

13000

35

NKIA 5907

243

35

42

55

27

28000

46000

5700

7500

11000

40

NKIA 5908

315

40

48

62

30

39000

55050

6000

8900

9000

45

NKIA 5909

375

45

52

68

30

40500

68900

6300

10500

8500

50

NKIA 5910

380

50

58

72

30

42500

75000

6890

11800

8000

55

NKIA 5911

550

55

63

80

34

50800

96000

8050

14500

7000

60

NKIA 5912

590

60

68

85

34

56400

98000

9500

15800

6500

65

NKIA 5913

635

65

72

90

34

57500

106000

9800

17000

6500

70

NKIA 5914

980

70

80

100

40

79050

152000

11800

22500

5500

NKIB

12

NKIB 5901

43

12

16

24

16

7600

8300

2160

1940

23000

15

NKIB 5902

52

15

20

28

18

10600

13600

2340

2370

21000

17

NKIB 5903

58

17

22

30

18

11000

14600

2500

2750

20000

20

NKIB 5904

107

20

25

37

23

21000

25500

3950

4200

17000

22

NKIB 59/22

122

22

28

39

23

22800

29500

4250

4850

15000

25

NKIB 5905

134

25

30

42

23

23600

31500

4350

5200

14000

30

NKIB 5906

151

30

35

47

23

25000

35500

4750

6300

13000

35

NKIB 5907

247

35

42

55

27

31500

50000

6000

8400

11000

40

NKIB 5908

320

40

48

62

30

43000

67000

7400

10900

9000

45

NKIB 5909

380

45

52

68

30

45000

73000

7700

12000

8500

50

NKIB 5910

385

50

58

72

30

47000

80000

8100

13700

8000

55

NKIB 5911

555

55

63

80

34

58000

100000

9700

16600

7000

60

NKIB 5912

595

60

68

85

34

60000

108000

10000

17900

6500

65

NKIB 5913

640

65

72

90

34

61000

112000

10300

19300

6500

70

NKIB 5914

985

70

80

100

40

84000

156000

13500

25000

5500

NKX NKX...Z

Shaft Diameter

Bearing Designation

Boudary Dimensions

Basic Load Rating

Limiting Speed

Without fixed cages

With fixed cages

Radial

Axial

mm

FW

D

C

C1

Co

Cor

Co

Cor

mm

N

rpm

10

NKX 10TN

NKX 10ZTN

10

19

23

9

6200

7800

10000

12100

12000

12

NKX 12

NKX 12 Z

12

21

23

9

9000

11000

10300

13300

11000

15

NKX 15

NKX 15 Z

15

24

23

9

10700

12700

10500

14500

9500

17

NKX 17

NKX 17 Z

17

26

25

9

11900

15000

10800

15700

8500

20

NKX 20

NKX 20 Z

20

30

30

10

16400

23800

14300

21400

7500

25

NKX 25

NKX 25 Z

25

37

30

11

18800

30500

19600

32000

6000

30

NKX 30

NKX 30 Z

30

42

30

11

22600

36000

20400

36500

5000

35

NKX 35

NKX 35 Z

35

47

30

12

24300

41500

21200

41000

4600

40

NKX 40

NKX 40 Z

40

52

32

13

26000

47000

27000

54000

4000

45

NKX 45

NKX 45 Z

45

58

32

14

27500

53000

28000

60000

3600

50

NKX 50

NKX 50 Z

50

62

35

14

38000

74000

29000

65000

3300

60

NKX 60

NKX 60 Z

60

72

40

17

42000

90000

41500

97000

2800

70

NKX 70

NKX 70 Z

70

85

40

18

44500

92000

43000

110000

2400
   Entities ring needle roller bearing  ( back to top )

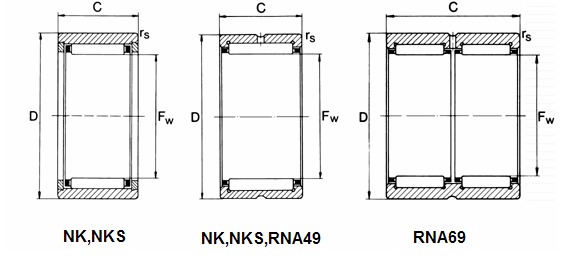

Entity front-runners needle bearing(NK NKS RNA RNAV RNAO...):
Shaft Diameter Bearing Designation Mass Approx Boudary Dimensions Basic Load Rating Limiting Speed
(Structure) Original Code Fw D C Cr Dynamic Cor Static Oil
mm NK NKS RNA49 RNA69 g mm N rpm
5 NK 5/10 TN - - - - 2.9 5 10 10 2100 1400 39000
NK 5/12 TN - - - - 3.2 5 10 12 2500 1600 39000
6 NK 6/10 TN - - - - 3.5 6 12 10 2600 2280 37000
NK 6/12 TN - - - - 4.1 6 12 12 3350 3150 37000
7 NK7/10TN - - - - 4.5 7 14 10 2850 2650 34000
NK7/12 - - - - 6.8 7 14 12 3650 3600 34000
8 NK 8/12 - - - - 8.3 8 15 12 3050 3650 32000
- NKS8 - - - 11.2 8 16 13 5000 4700 32000
9 NK9/12 - ? ? - 9.2 9 16 12 4500 5000 31000
10 NK 10/12 - - - 4624097 K 10 19 17 12 4750 5350 23500
- - - - 5624097 16.6 10 17 15 4860 7100 23500
12 NK 12/12 - - - 644097 11.8 12 19 12 6050 6400 21640
- - - - 5624098 15.4 12 19 15 6400 7100 21640
NK 12/16 - - - - 16.8 12 19 16 8200 9800 21640
14 NK 14/16 - - - 4624900 K 20.8 14 22 16 8260 9600 18322
- NKS 14 - - - 27 14 25 16 10400 10800 17652
- - RNA 4900 - 4624900 24.4 14 22 13 8060 9000 18322
- - - RNA 6900 6634900 29.1 14 22 22 8281 11612 18322
15 NK 15/12 - - - 644800 K 18.5 15 23 12 8600 10070 21004
- - - - 7948/15 16.1 15 22 12 8200 9800 8412
- - - - 644302 18.2 15 25 12 10600 13500 17144
16 NK 16/16 - - - - 20.8 16 24 16 9030 11900 15522
NK 16/20 - - - 624701 23.9 16 24 20 10400 16800 15522
- - RNA 4901 - 4624901 16.6 16 24 13 6400 8900 15522
- - - RNA 6901 6634901 28.7 16 24 22 14000 18600 15522
- NKS 16 - - - 30 16 28 16 14900 15000 20000
17 NK 17/16 - - - 664903 K 21.5 17 25 16 9000 13500 14163
NK17/20 - - - - 23.5 17 25 20 9800 10200 18000
18 NK 18/20 - - - - 30.5 18 26 20 10500 13800 13628
20 NK 20/16 - - - 664802 25.7 20 28 16 11500 13400 12716
NK 20/20 - - - 664802 29.3 20 28 20 12400 21800 12716
NK 202616 - - - - 20.8 20 26 16 9600 10800 9125
NK 202620 - - - - 17.2 20 26 20 10500 11900 9125
- NKS 20 - - - 46.8 20 32 20 20000 22000 18000
- - - - 6624101 24.3 20 28 25 11000 12900 12716
- - RNA 4902 - 4624902 20.5 20 28 13 10800 12800 12716
- - - RNA 6902 6634902 35.4 20 28 23 13000 25000 12716
22 NK 22/16 - - - NK 223016 29.2 22 30 16 13500 18000 11527
- - - - NK 223516 34.6 22 35 16 18600 20800 12711
- NKS 22 - - - 60.2 22 35 20 21500 25000 17000
- - RNA 4903 - 4644903 20.7 22 30 13 12000 16800 16300
- - - RNA6903 6634903 39.8 22 30 23 14000 19900 16300
- - - - 624703 53 22 35 25 24500 28000 14187
- - - - 634704 L 42.5 22 30 30 17700 27000 16300
- - - - 644704 27.4 22 28 16 10500 15050 15172
- - - - NK 223516 49.7 22 35 16 18600 20800 16522
24 NK 24/16 - - - - 37.5 24 32 16 18600 29000 15711
25 NK 25/16 - - - 624904 30 25 33 16 12900 20400 15000
NK 25/20 - - - 644804 38.4 25 33 20 16800 28500 15000
- - RNA 4904 - 4644904 50.8 25 37 17 11912 16594 14060
- - - RNA 6904 6634904 97.7 25 37 30 26000 43000 14060
- NKS 25 - - - 65 25 38 20 25800 31000 16300
- - - - 624704 100.1 25 35 25 14900 22400 14060
- - - - 644804 63 25 33 30 18800 30500 14060
26 NK 26/16 - - - - 30 26 34 16 15000 23000 16300
NK 26/20 - - - - 40 26 34 20 17000 30000 16300
28 NK 28/20 - - - - 68 28 38 33 33000 57000 12000
? NK28/30 - - - - 79 28 38 33 33000 57000 12000
- NKS 28 - - - 80 28 42 20 25900 33500 14600
- - RNA 49/22 - - 82 28 39 17 22320 32000 13000
- - - RNA 69/22 - 126 28 39 30 21200 30500 12500
30 NK 30/20 - - - 644805 57.9 30 40 20 20600 32000 12066
NK 30/30 - - - - 95 30 40 30 31500 50000 14500
- - RNA 4905 - 4624905 57 30 42 17 13452 20475 12066
- - - RNA 6905 6634905 106.5 30 42 30 26300 31750 12066
- - - - 624905 K 68 30 42 20 15400 24500 12066
32 NK 32/20 - - - 624705 75.4 32 42 20 17500 33500 12066
- - RNA 49/28 - 46449/32K 80 32 45 17 17400 30050 12000
- NKS 32 - - - 100 32 47 22 31000 40000 12100
- - - RNA 69/28 - 125 32 45 30 39500 61300 13100
- - - - 644906 42 32 48 11 10750 30500 12000
- - - - 644706 193 32 50 35 40500 63000 12000
35 NK 35/20 - - - 644806 70 35 45 20 13851 26900 12000
NK 35/30 - - - - 95 35 45 30 17500 25200 12000
- - RNA 4906 - 4624906 62.8 35 47 17 17000 30500 12000
- - - RNA 6906 6634906 116 35 47 30 35000 67000 12000
- - - - 644907 161 35 51 32 43500 71000 11680
37 ? NKS 37 - - - 154 37 52 22 28500 45500 9027
NK 37/20 - - - - 150 37 47 20 27600 44200 8500
NK 37/30 - - - - 168 37 47 30 25000 42000 8400
38 NK 38/20 - - - - 162 38 48 20 25000 40500 8200
NK 38/30 - - - - 186 38 48 30 25000 40000 8100
40 NK 40/20 - - - - 78.9 40 50 20 19600 43000 8800
NK 40/30 - - - - 120 40 50 30 22200 51350 8800
- NKS 40 - - - 138 40 55 22 21000 50500 8300
- - RNA49/32 - - 112 40 52 20 26000 48000 8000
- - - RNA 69/32 66349/32 147 40 52 36 25500 68500 8200
42 NK 42/20 - - - - 83 42 52 20 23900 45000 10000
NK 42/30 - - - - 125 42 52 30 27000 49000 10000
- - RNA4907 - 4624907 99.3 42 55 20 19800 41500 8710
- - - RNA 6907 6634907 160 42 55 36 26000 60500 8710
- - - - 644708 148 42 65 22 31500 51000 8710
43 NK 43/20 - - - - 84 43 53 20 25700 49000 10000
NK 43/30 - - - - 126 43 53 30 39000 75000 10000
45 NK 45/20 - - - 644808 81.5 45 55 20 19800 46500 7650
NK 45/30 - - - - 75.3 45 55 30 20500 49600 7650
- NKS 45 - - - 80 45 60 22 21600 50500 7650
48 - - RNA 4908 - 4644908 132 48 62 22 31036 63873 8120
- - - RNA 6908 6634908 238 48 62 40 64000 112000 8120
50 NK 50/25 - - - - 167 50 62 25 28000 67000 8140
NK 50/35 - - - - 236 50 62 35 32000 70100 8140
- NKS50 - - - 328 50 65 22 40000 62000 8140
52 - - RNA 4909 - 4624909 163 52 68 22 37000 69500 7625
- - - RNA 6909 6634909 308 52 68 40 61500 123500 7625
55 NK 55/25 - - - - 167 55 68 25 30600 60800 7625
NK 55/35 - - - - 210 55 68 35 36000 68000 7625
- NKS 55 - - - 225 55 72 22 45000 7000 7500
58 - - RNA 4910 - 4644910 161 58 72 22 41000 72000 7500
- - - RNA 6910 6634910 296 58 72 40 68000 135000 7500
60 NK 60/25 - - - - 154 60 72 25 39000 86000 7000
NK 60/35 - - - - 195 60 72 35 38000 85000 7000
- NKS 60 - - - 210 60 80 28 45000 96000 7000
63 - - RNA 4911 - 4644911 241 63 80 25 50600 96580 6340
- - - RNA 6911 6634911 430 63 80 45 82560 172000 6340
65 NK 65/25 - - - - 195 65 78 25 49000 65000 6200
NK 65/35 - - - - 210 65 78 35 59000 72000 6010
? NKS 65 - - - 298 65 85 28 68000 98000 6200
68 - - RNA 4912 - 4644912 257 68 85 25 52800 91050 6100
- - - RNA 6912 6634912 436 68 85 45 88500 186000 6100
70 NK 70/25 - - - - 320 70 85 25 62000 78000 6000
NK 70/35 - - - - 398 70 85 35 65000 92000 6000
- NKS 70 - - - 421 70 90 28 85000 113000 6000
72 - - RNA 4913 - 4644913 300 72 90 25 57500 110500 6100
- - - RNA 6913 6634913 571 72 90 45 87600 194500 6100
75 NK 75/25 - - - - 348 75 90 25 56000 110000 6000
NK 75/35 - - - - 520 75 90 35 59000 12000 6000
80 NK 80/25 - - - - 526 80 95 25 55000 13500 6000
NK 80/35 - - - - 720 80 95 35 54000 14000 6000
- - RNA 4914 - 4644914 400 80 100 30 79000 154000 5130
- - - RNA 6914 6634914 815 80 100 54 121000 263000 5130
85 - - RNA 4915 - 4644915 472 85 105 30 82000 158000 5130
- - - RNA 6915 6634915 923 85 105 54 128000 272000 5130
? NK 90/25 - - - - 580 90 110 25 72000 180000 5200
90 NK90/35 - - - - 610 90 110 35 83000 21000 5100
- - RNA 4916 - 4644916 496 90 110 30 81000 170500 4927
- - - RNA 6916 6634916 978 90 110 54 130500 280600 4927
100 NK 100/26 - - - - 585 100 120 26 76000 145000 4600
NK 100/36 - - - - 680 100 120 36 98000 223000 4600
- - RNA 4917 - 4644917 608 100 120 35 98000 207000 4600
- - - RNA 6917 6634917 1112 100 120 63 161000 337000 4600
105 - - RNA 4918 - 4644918 713 105 125 35 98500 239000 4000
- - - RNA 6918 6634918 1250 105 125 63 174000 380000 4000
110 NK 110/30 - - - - 650 110 130 30 98000 210000 4000
NK 110/40 - - - - 710 110 130 40 127000 290000 4000
- - RNA 4919 - 4644919 685 110 130 35 112000 245000 3870
- - - RNA 6919 6634919 1325 110 130 63 196000 400000 3870
115 - - RNA 4920 - 4624920 1006 115 140 40 120000 264000 3710
- - - RNA 6920 6634920 1400 115 140 71 212000 440000 3920
125 - - RNA 4922 - 6634922 1200 125 150 40 124000 270000 3350
130 - - RNA 4924 - 4644824 685 130 150 30 91600 234000 3000
135 - - RNA 4924 - 4644924 1760 135 165 45 174000 386000 2920
155 - - RNA 4928 - 4644824 988 155 175 35 119000 321000 2570
160 - - RNA 4928 - 4644928 2350 160 190 50 200000 460000 2900

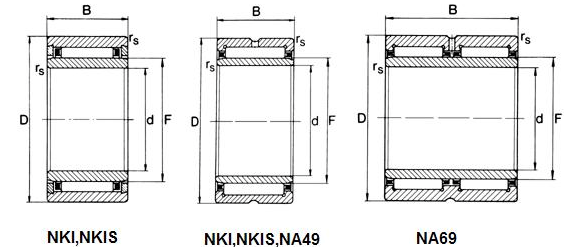

Entity front-runners needle bearing(NKI,NKIS,NA,NAV...)

1.These load,speed and mass is reference of choice only.

 2.If the cages are made of plastics,suffix "TN" is add to the bearing No.,the maximum allowable working temperature is 120 in short time working.

3.With grease lubrication,60% of these limiting sppeed will aplly.
Shaft Diameter Bearing Designation Mass Approx γߴBoudary Dimensions Basic Load Rating Limiting Speed
Structure Original Code d Fw D C Cr Dynamic Cor Static Oil
mm NKI NKIS NA49 NA69 g mm N rpm
8 - NKIS 8 - - - 46 8 14 25 16 1240 11300 21500
9 NKI 9/12 - - - - 14.6 9 12 19 12 6200 7002 21700
10 NKI 10/16 - - - - 27.3 10 14 22 16 9808 10500 19650
- - NA 4900 - 4524900 21 10 14 22 13 8006 9000 23700
- ? - NA 6900 6534900 38.4 10 14 22 22 8281 11612 23700
? NKI 12/20 - - - - 39 12 16 24 20 14000 18400 21000
- - - NA 6901 6534901 44.5 12 16 24 22 11647 17052 20000
- NKIS 12 - - - 58 12 18 30 16 16000 17000 20000
15 NKI 15/16 - - - - 38 15 19 27 16 8847 12853 19100
NKI 15/20 - - - - 45.7 15 19 27 20 12347 19053 19100
- - NA 4902 - 4524902 32 15 20 28 13 6447 9053 18800
- - - NA 6902 6534902 61.6 15 20 28 23 13100 20900 18800
- NKIS 15 - - - 90 15 22 35 20 23500 24000 17000
17 NKI 17/16 - - - - 41.4 17 21 29 16 13000 18200 20000
NKI 17/20 - - - - 52.3 17 21 29 20 17100 25000 21000
- - NA 4903 - 4524903 32.8 17 22 30 13 7010 10010 17000
- - - NA 6903 6534903 68.2 17 22 30 23 14400 24900 17000
20 NKI 20/16 - - - - 48.5 20 24 32 16 10800 17000 16700
- - NA 4904 - 4524904 70.2 20 25 37 17 11912 16594 16200
- NKIS 20 - NA 6904 6534905 119 20 28 42 20 26500 35500 14000
22 NKI 22/16 - - - - 50 22 25 34 16 10200 15340 16200
- - NA 49/22 - - 76 22 28 39 17 12996 19175 14360
- - - NA 69/22 - 130 22 28 39 30 21375 35750 14360
? NKI 25/20 - - - - 101 25 29 38 20 21900 24000 14000
25 NKI 25/30 - - - - 115 25 29 38 30 31500 56000 14000
- - NA 4905 - 4524905 76 25 30 42 17 13452 20475 14000
- - - NA 6905 6534905 138 25 30 42 30 19300 31750 14000
- NKIS 25 - - - 160 25 32 47 22 32000 55000 12500
? NKI 28/20 - - - - 132 28 32 45 20 23100 37500 11400
28 NKI 28/30 - - - - 162 28 32 45 30 32500 42000 12500
- - NA 49/28 - 45449/28 90.7 28 32 45 17 13900 20100 12500
- - - NA 69/28 - 170 28 32 45 30 22400 36850 12500
30 NKI 30/20 - - - - 145 30 35 45 20 24000 32000 12000
NKI 30/30 - - - - 171 30 35 45 30 29000 36000 11000
- NKIS 30 - - - 184 30 37 52 22 31000 39000 12000
- - NA 4906 - 4524906 101 30 35 47 17 25000 34000 11000
- - - NA 6906 6534906 192 30 35 47 30 40500 63000 11000
32 NKI 32/20 - - - - 101 32 35 45 20 13851 26900 12000
NKI 32/30 - - - - 122 32 35 45 30 18000 42000 12000
- - NA 49/32 - 45449/32 150 32 40 52 20 19000 32600 11000
- - - NA 69/32 66349/32 272 32 40 52 36 25500 68500 11000
35 NKI 35/20 - - - - 139 35 40 50 20 21000 41000 11000
NKI 35/30 - - - - 165 35 40 50 30 22200 51350 11000
- - NA 4907 - 4524907 151 35 42 55 20 19800 41500 11000
- - - NA 6907 6534907 301 35 42 55 36 26000 60500 11000
- NKIS 35 - - - 210 35 43 58 22 33000 56000 9500
38 NKI 38/20 - - - - 136 38 43 53 20 27000 49000 11000
NKI 38/30 - - - - 207 38 43 53 30 38000 69000 11000
40 NKI 40/20 - - - - 124 40 45 55 20 22000 48000 11000
NKI 40/30 - - - ? 184 40 45 55 30 35000 86000 11000
- NKIS 40 - - ? 281 40 50 65 22 39000 65000 9000
- - NA 4908 - 4544908 123 40 48 62 22 31036 63873 9000
- - - NA 6908 6534908 401 40 48 62 40 64000 112000 9000
42 NKI 42/20 - - - - 138 42 47 57 20 26000 52500 9500
NKI 42/30 - - - - 222 42 47 57 30 34000 69000 9000
45 NKI 45/25 - - - - 218 45 50 62 25 36000 70000 9000
NKI 45/35 - - - - 289 45 50 62 35 41500 102000 9000
- - NA 4909 - 4544909 260 45 50 68 22 37000 69500 9000
- - - NA 6909 6534909 479 45 50 68 40 61500 123500 9000
- NKIS 45 - - - 306 45 55 72 22 43000 71000 7500
50 NKI 50/25 - - - - 262 50 55 68 25 32000 78000 7890
NKI 50/35 - - - - 350 50 55 68 35 45000 82000 7000
- - NA 4910 - 4544910 264 50 58 72 22 41000 72000 7000
- - - NA 6910 6534910 457 50 58 72 40 68000 135000 7000
- NKIS 50 - - - 510 50 60 80 28 60000 95000 7000
55 NKI 55/25 - - - - 280 55 60 72 25 42000 82000 6500
NKI 55/35 - - - - 357 55 60 72 35 48000 126800 6500
- - NA 4911 - 4544911 386 55 63 80 25 50600 96580 6500
- - - NA 6911 6534911 760 55 63 80 45 82560 172000 6500
- NKIS 55 - - - 558 55 65 85 28 49000 96000 6500
60 NKI 60/25 - - - - 388 60 68 82 25 35500 85000 6500
NKI 60/35 - - - - 553 60 68 82 35 58000 135000 6000
- - NA 4912 - 4544912 412 60 68 85 25 52800 11050 6000
- - - NA 6912 6534912 798 60 68 85 45 88500 186000 6000
- NKIS 60 - - - 550 60 70 90 28 65000 110000 6000
65 NKI 65/25 - - - - 467 65 73 90 25 45000 89000 6000
NKI 65/35 - - - - 649 65 73 90 35 65000 111000 6000
- - NA 4913 - 4544913 435 65 72 90 25 57500 110500 6000
- - - NA 6913 6534913 821 65 72 90 45 87600 194500 6000
- NKIS 65 - - - 641 65 75 95 28 69000 140000 6000
70 NKI 70/25 - - - - 521 70 80 95 25 56000 125000 5500
NKI 70/35 - - - - 737 70 80 95 35 75000 150000 5500
- - NA 4914 - 4544914 712 70 80 100 30 79000 154000 5500
- - - NA 6914 6534914 1362 70 80 100 54 121000 263000 5500
- NKIS 70 - - - 865 70 80 100 28 75000 133000 5500
75 - - NA 4915 - 4544915 765 75 85 105 30 82000 158000 5500
- - - NA 6915 6534915 1429 75 85 105 54 128000 272000 5500
80 - - NA 4916 - 4544916 870 80 90 110 30 81000 170500 5500
- - - NA 6916 6534916 1510 80 90 110 54 130500 280600 5000
85 - - NA 4917 - 4544917 1250 85 100 120 35 111000 237000 4600
- - - NA 6917 6534917 2200 85 100 120 63 166000 400000 4600
90 - - NA 4918 - 4544918 1312 90 105 125 35 114000 250000 4400
- - - NA 6918 6534918 2310 90 105 125 63 172000 425000 4400
95 - - NA 4919 - 4544919 1371 95 110 130 35 116000 260000 4200
- - - NA 6919 6534919 2500 95 110 130 63 174000 440000 4200
100 - - NA 4920 - 4544920 1900 100 115 140 40 120000 274000 4000
- - - NA 6920 6534920 3170 100 115 140 71 190000 520000 4000
120 - - NA 4922 - 4544922 2070 110 125 150 40 132000 290000 3700
- - - NA 6922 - 1080 110 120 140 30 94000 216000 3900
130 - - NA 4924 - 4544924 2860 120 135 165 45 181000 390000 3400
- - - NA 4824 - 1170 120 130 150 30 99000 239000 3600
140 - - NA 4926 - 4544926 3900 130 150 180 50 203000 470000 3100
- - - NA 4826 - 1810 130 145 165 35 118000 310000 3200
- - NA 4928 - 4544928 4150 140 165 190 50 209000 500000 2900
- - - NA 4828 - 1920 140 150 175 35 120000 325000 3000
   Needle to the heart and maintain aircraft components  ( back to top )
1.These load,speed and mass is reference of choice only.
2.If the cages are made of plastics,suffix "TN" is added to the bearing No., the maximum allowable working temperature is 120 in continuous working and 180 in short time working.
3.With grease lubrication,60% of these limiting speed will apply.

Radial Needle Roller And Cage AssembliesKZW,K...ZWD
Shaft Diameter(mm)

 Designation

 Mass(g)

 Dimensions

 Basic Load Ratings

 LimitingSpeed(Rpm)
Fw

 Ew

 Bc

 Cr Dynamic Cor Static
mm N
12 K121520ZW 3.8 12 15 20 8400 12200 27000
14 K141839ZW 16 14 18 39 21600 2880 25000
15 K151924ZW 10.5 15 19 24 13900 20400 24000
20 K202445ZW 37 20 24 45 41000 55000 21000
? K202540ZW 38 20 25 40 42200 58000 21000
22 K222740ZW 36 22 27 40 38800 54000 21000
24 K243031ZW 32 24 30 31 27500 43500 18000
25 K253026ZW 22 25 30 26 21400 35500 18000
? K253039ZW 33 25 30 39 28500 38000 18000
27 K273251ZW 40 27 32 51 85000 109000 17000
28 K283326ZW 23 28 33 26 19400 24300 16000
30 K303526ZW 30 30 35 26 38000 63000 15000
34 K343830ZW 28 34 38 30 43000 72000 14000
36 K364246ZW 75 36 42 46 50000 82000 12000
37 K374228ZW 40 37 42 28 21300 52000 12000
? K374232ZW 47 37 42 32 23800 57600 12000
39 K394426ZW 45 39 44 26 27500 56000 12000
40 K404426ZW 38 40 44 26 20200 35000 12000
48 K485444ZW 86 48 54 44 54000 120000 9500
52 K525832ZW 68 52 58 32 54000 108000 9000
55 K556144ZW 134 55 61 44 68200 127000 8500
63 K637044ZW 174 63 70 44 66000 146000 7500
68 K687540ZW 120 68 75 40 48500 125000 7000
75 K758240ZW 180 75 82 40 71500 157000 6500

Radial Needle Roller And Cage Assemblies K, K..D  ( back to top )


  Bearing Designation Boudary Dimensions Basic Load Rating Limiting Speed
Shaft Current OriginalCode Fw Ew Bc CrDynamic CorStatic Oil
Diameter
mm mm N rpm
5 K5X8X8 29241/5 5 8 8 2300 1880 37000
K5X8X10 39241/5 5 8 10 2800 2450 37000
6 K6X9X8 29241/6 6 9 8 2560 2240 35000
K6X9X10 39241/6 6 9 10 3300 3100 35000
K6X10X13 49241/6 6 10 13 3500 2800 33000
7 K7X10X8 29241/7 7 10 8 2750 2550 32000
K7X10X10 39241/7 7 10 10 3350 3400 32000
8 K8X11X8 29241/8 8 11 8 3000 2900 30000
K8X11X10 39241/8 8 11 10 3830 3950 30000
K8X11X13 49241/8 8 11 13 5000 5700 30000
K8X12X10 29242/8 8 12 10 4900 4600 30000
9 K9X12X10 39241/9 9 12 10 4200 4700 30000
K9X12X13 49241/9 9 12 13 5500 6700 30000
10 K10X13X10 39241/10 10 13 10 4500 5250 27000
K10X13X13 39241/10 10 13 13 6000 7600 27000
K10X13X16 10 13 16 6300 7800 27000
K10X14X10 29242/10 10 14 10 7000 7900 27000
K10X14X13 39242/10 10 14 13 8000 9100 26000
K10X16X12 19244/10 10 16 12 7000 9300 27000
12 K12X15X9 12 15 9 4120 5210 25000
K12X15X10 39241/12 12 15 10 4320 5730 25000
K12X15X13 49241/12 12 15 13 6000 8100 25000
K12X16X8 19242/12 12 16 8 4200 4700 25000
K12X16X10 29242/12 12 16 10 6000 6900 25000
K12X16X13 39242/12 12 16 13 7900 9200 25000
K12X17X13 59242/12 12 17 13 9300 10000 24000
K12X18X12 19244/12 12 18 12 9800 8000 24000
K12X15X20 K12X15X20 12 15 20 8200 12000 25000
14 K14X17X10 14 17 10 5100 6800 23000
K14X17X17 14 17 17 9300 14000 23000
K14X18X10 29241/14 14 18 10 6800 8300 23000
K14X18X13 39241/14 14 18 13 8100 9800 23000
K14X18X14 14 18 14 9200 12000 23000
K14X18X15 49241/14 14 18 15 10000 13000 23000
K14X18X17 59241/14 14 18 17 10500 13900 23000
K14X20X12 19243/14 14 20 12 9900 10500 22000
15 K15X18X14 15 18 14 7500 11000 23000
K15X18X17 15 18 17 9600 15900 23000
K15X19X10 29242/15 15 19 10 7200 9000 22000
K15X19X13 39241/15 15 19 13 8300 9800 22000
K15X19X17 59241/15 15 19 17 10300 15000 22000
K15X19X24 79241/15 15 19 24 12800 20100 22000
K15X19X13 29242/15 15 20 13 9700 11000 22000
K15X21X12 19243/15 15 21 12 10000 13000 22000
K15X21X15 39242/15 15 21 15 13800 16000 22000
K15X21X21 15 21 21 18000 24000 22000
16 K16X20X10 29241/16 16 20 10 7600 9700 22000
K16X20X13 39241/16 16 20 13 8700 11300 22000
K16X20X17 59241/16 16 20 17 11200 16300 22000
K16X21X10 19242/16 16 21 10 9000 12000 22000
K16X22X12 19243/16 16 22 12 11000 12000 21000
K16X22X13 16 22 13 12000 13400 21000
K16X22X16 16 22 16 14300 17000 21000
K16X22X20 49243/16 16 22 20 18000 22300 21000
K16X23X14 19244/16 16 23 14 19000 21000 19000
K16X24X20 19245/16 16 24 20 21100 23000 20000
17 K17X21X10 29241/17 17 21 10 7900 10100 21000
K17X21X13 39241/17 17 21 13 10000 14100 21000
K17X21X17 59241/17 17 21 17 12000 17400 21000
K17X23X14 29243/17 17 23 14 11000 15000 21000
18 K18X22X10 29241/18 18 22 10 8200 9900 20000
K18X22X13 39241/18 18 22 13 9000 12100 20000
K18X22X17 59241/18 18 22 17 11900 17600 20000
K18X24X12 19243/18 18 24 12 11200 12900 20000
K18X24X13 18 24 13 12900 14900 20000
K18X24X13.5 18 24 13.5 12900 14900 20000
K18X24X20 49243/18 18 24 20 20000 26500 20000
K18X25X14 18 25 14 16500 18800 20000
K18X25X22 18 25 22 22900 28400 20000
K18X26X14 18 26 14 18000 20000 18000
K18X28X16 19244/18 18 28 16 19000 18400 19000
19 K19X23X13 19 23 13 9300 13000 20000
K19X23X17 19 23 17 12000 18600 20000
20 K20X24X10 29241/20 20 24 10 8700 12100 19000
K20X24X12 20 24 12 9600 13800 19000
K20X24X13 39241/20 20 24 13 9600 13800 19000
K20X24X17 59241/20 20 24 17 12400 20000 19000
K20X26X12 19243/20 20 26 12 13100 15700 19000
K20X26X16 K9249/20 20 26 16 18000 25000 18500
K20X26X17 39243/20 20 26 17 18700 25500 19000
K20X26X20 49243/20 20 26 20 20600 28500 19000
K20X28X20 19245/20 20 28 20 23400 28000 18000
K20X28X25 29245/20 20 28 25 3000 28500 18000
K20X30X30 39245/20 20 30 30 35000 41000 18000
21 K21X25X13 21 25 13 9600 14500 19000
K21X25X17 21 25 17 12800 21000 19000
22 K22X26X10 29241/22 22 26 10 8700 12900 18000
K22X26X13 39241/22 22 26 13 10000 15400 18000
K22X26X17 59241/22 22 26 17 13100 22100 18000
K22X27X13 29242/22 22 27 13 14000 23000 18000
K22X28X17 39243/22 22 28 17 19000 26500 18000
K22X28X23 59243/22 22 28 23 20000 27000 19000
K22X29X16 19244/22 22 29 16 19500 25000 17000
K22X30X15 22 30 15 19600 22900 17000
K22X30X20 19245/22 22 30 20 21000 23500 18900
K22X32X24 22 32 24 33500 39500 16000
23 K23X35X16 23 35 16 24000 23400 15000
24 K24X28X10 24 28 10 9400 14300 17000
K24X28X13 24 28 13 10500 17000 17000
K24X28X17 9243/24 24 28 17 14000 24500 17000
K24X29X13 24 29 13 13100 19100 16000
K24X30X17 24 30 17 19000 27000 16000
K24X30X31 24 30 31 27000 43000 16000
25 K25X29X10 29241/25 25 29 10 9700 14900 16000
K25X29X13 39241/25 25 29 13 10800 17900 16000
K25X29X17 59241/25 25 29 17 14500 25500 16000
K25X30X13 29242/25 25 30 13 14100 21300 16000
K25X30X20 59242/25 25 30 20 21100 28000 16000
K25X30X25 25 30 25 21700 40400 15000
K25X30X26 SZ-436 25 30 26 20100 26500 15000
K25X31X17 39243/25 25 31 17 79000 28000 16000
K25X31X21 39243/25 25 31 21 24100 37500 16000
K25X32X16 39245/25 25 32 16 20500 27500 15000
K25X33X20 19244/25 25 33 20 28000 37500 15000
K25X33X24 29245/25 25 33 24 33900 46500 15000
K25X34X18 25 34 18 48000 67000 15000
K25X35X30 39245/25 25 35 30 46500 61500 14000
K25X30X26 25 30 26 21000 35000 14000
26 K26X30X10 26 30 10 9500 15500 16000
K26X30X13 26 30 13 11100 18700 16000
K26X30X17 26 30 17 14700 27000 16000
K26X31X13 26 31 13 12400 18400 15000
K26X30X22 26 30 22 15200 28000 16000
27 K27X32X17 27 32 27 16000 34000 17000
28 K28X32X16.5 28 32 16.5 15000 34000 14000
K28X32X17 9242/28 28 32 17 15000 32400 14000
K28X33X13 29241/28 28 33 13 14800 32400 14000
K28X33X17 49241/28 28 33 17 19100 23600 14000
K28X33X27 79241/28 28 33 27 22800 33000 14000
K28X34X17 39242/28 28 34 17 21300 40500 14000
K28X35X16 19243/28 28 35 16 21000 35000 14000
K28X35X18 28 35 18 23500 29000 14000
K28X35X20 29243/28 28 35 20 24000 33500 14000
K28X35X27 28 35 27 34500 34000 14000
K28X36X16 28 36 16 34000 54500 11000
K28X40X18 28 40 18 33000 47000 12000
K28X40X25 28 40 25 45000 36500 12000
30 K30X34X13 30 34 13 11800 54500 13000
K30X35X13 29241/30 30 35 13 15100 21200 13000
K30X35X17 49241/30 30 35 17 19100 25000 13000
K30X35X27 19241/30 30 35 27 30000 33500 13000
K30X37X16 19243/30 30 37 16 22500 58500 13000
K30X38X25 29244/30 30 38 25 16000 33000 13000
K30X40X18 30 40 18 31500 39000 12000
K30X40X30 49243/30 30 40 30 48500 39500 13000
K30X35X26 30 35 26 23500 68500 12000
32 K32X37X13 29241/32 32 37 13 15000 43500 12000
K32X37X17 49241/32 32 37 17 19400 25000 12000
K32X37X27 19241/32 32 37 27 29500 59500 12000
K32X37X28 32 37 28 23100 43000 12000
K32X38X16 32 38 16 21000 34000 12000
K32X38X20 49242/32 32 38 20 26000 44500 12000
K32X38X26 32 38 26 27000 46500 12000
K32X39X16 19243/32 32 39 16 23500 35000 12000
K32X39X18 32 39 18 26000 40500 12000
K32X40X20 19243/32 32 40 20 37000 40500 12000
K32X40X36 -- 32 40 36 53500 91500 12000
K32X46X32 -- 32 46 32 65500 82500 11000
K32X40X42 -- 32 40 42 49500 83500 12000
35 K35X40X13 29241/35 35 40 13 15800 27500 11000
K35X40X17 49241/35 35 40 17 20300 38000 11000
K35X40X25 29244/35 35 40 25 29000 59500 11000
K35X40X27 19241/35 35 40 27 24500 48000 11000
K35X40X27 79241/35 35 40 27 27800 62100 11000
K35X40X30 39244/35 35 40 30 25000 49500 11000
K35X42X16 19243/35 35 42 16 23900 37000 11000
K35X42X18 -- 35 42 18 27000 42500 11000
K35X42X30 49243/35 35 42 30 38500 67500 11000
K35X43X18 -- 35 43 18 28000 41500 11000
K35X45X20 -- 35 45 20 36500 49500 10000
K35X45X30 29245/35 35 45 30 52500 78500 10000
K35X45X49 -- 35 45 49 81500 13400 10000
K35X40X30 -- 35 40 30 31500 65500 11000
K35X42X20 29243/35 35 42 20 29500 48500 11000
36 K36X41X30 -- 36 41 30 23000 43000 11000
K36X42X16 -- 36 42 16 24000 42000 11000
37 K37X42X17 -- 37 42 17 21900 42500 10000
K37X42X27 -- 37 42 27 31500 67500 10000
K37X45X26 -- 37 45 26 43500 73500 10000
38 K38X43X17 49241/38 38 43 17 20000 38000 10000
K38X43X27 79241/38 38 43 27 31000 67500 10000
K38X46X20 19244/38 38 46 20 35000 56500 10000
K38X46X32 -- 38 46 32 54500 98500 10000
39 K39X44X24 -- 39 44 24 28000 58500 10000
K39X44X26 -- 39 44 26 27000 55500 10000
40 K40X44X13 -- 40 44 13 13500 28000 10000
K40X45X13 29241/40 40 45 13 17100 32000 10000
K40X45X17 49241/40 40 45 17 20900 41000 10000
K40X45X21 -- 40 45 21 24400 49500 10000
K40X45X27 19241/40 40 45 27 32500 72500 10000
K40X46X17 39242/40 40 46 17 24500 44500 9000
K40X47X18 -- 40 47 18 29000 49500 9000
K40X47X20 29243/40 40 47 20 32000 56500 9000
K40X48X20 19244/40 40 48 20 35500 58500 9000
K40X45X30 -- 40 45 30 26000 53500 9000
42 K42X47X13 29241/42 42 47 13 17300 33000 9000
K42X47X17 49241/42 42 47 17 21100 42500 9000
K42X47X25 -- 42 47 25 27000 57500 9000
K42X47X27 79241/42 42 47 27 33000 74500 9000
K42X48X35 79242/42 42 48 35 35000 76000 9000
K42X50X18 -- 42 50 18 31000 49500 9000
K42X50X20 19244/42 42 50 20 34500 56500 9000
K42X47X30 -- 42 47 30 31000 75500 9000
43 K43X48X17 -- 43 48 17 21000 42500 9000
K43X48X27 -- 43 48 27 33000 74500 9000
K43X50X18 9249/43 43 50 18 30500 53500 9000
45 K45X49X19 -- 45 49 19 17500 4000 8000
K45X50X17 49241/45 45 50 17 22000 45000 8000
K45X50X27 19241/45 45 50 27 34000 79500 8000
K45X50X32 -- 45 50 32 38000 90500 8000
K45X52X18 -- 45 52 18 31000 56500 8000
K45X52X21 -- 45 52 21 39500 57500 8000
K45X53X20 19244/45 45 53 20 38500 66500 8000
K45X53X21 -- 45 53 21 38000 66500 8000
K45X53X22 -- 45 53 22 42000 66500 8000
K45X53X28 -- 45 53 28 51500 97500 8000
K45X59X18 -- 45 59 18 43500 53500 7000
K45X59X32 -- 45 59 32 72500 101500 7000
K45X59X36 -- 45 59 36 75500 108500 7000
K45X51X36 -- 45 51 36 44500 98500 7000
47 K47X51X36 -- 47 52 17 22800 48500 8000
K47X52X17 -- 47 52 27 34500 82500 8000
K47X53X25 -- 47 53 25 38000 81500 8000
K47X55X28 -- 47 55 28 52500 99500 7500
48 K48X54X19 39242/48 48 54 19 30000 60500 7500
K48X54X25 59242/48 48 54 25 31000 91000 7500
50 K50X55X13.5 -- 50 55 13.5 17500 36000 7500
K50X55X17 49241/50 50 55 17 21400 46500 7500
K50X55X20 59241/50 50 55 20 26000 59500 7500
K50X55X30 9243/50 50 55 30 38500 96500 7500
K50X57X18 -- 50 57 18 33000 62500 7000
K50X58X20 19244/50 50 58 20 35000 61500 7000
K50X58X25 29244/50 50 58 25 43500 80500 7000
52 K52X57X12 -- 52 57 12 17500 36000 7000
55 K55X60X20 -- 55 60 20 28000 65500 6500
K55X60X27 -- 55 60 27 37500 96500 6500
K55X60X30 -- 55 60 30 40500 10300 6500
K55X61X20 49241 /55 55 61 20 41000 11000 6500
K55X62X18 -- 55 62 18 35000 68500 6500
K55X63X15 -- 55 63 15 24500 40500 6500
K55X63X20 19243/55 55 63 20 39500 79500 6500
K55X63X25 29243/55 55 63 25 49500 99500 6500
K55X63X32 -- 55 63 32 61500 129500 6500
K55X60X40 -- 55 60 40 48000 132000 6500
56 K56X61X20 -- 56 61 20 27000 64500 6500
58 K58X63X17 -- 58 63 17 21500 63500 6000
K58X64X19 -- 58 64 19 24500 77500 6000
K58X65X18 -- 58 65 18 34500 69500 6000
K58X65X38 -- 58 65 38 48500 106500 6000
60 K60X65X20 49241/60 60 65 20 29000 71500 6000
K60X65X30 69241/60 60 65 30 42000 115500 6000
K60X68X20 19243/60 60 68 20 43000 84500 5500
K60X68X23 -- 60 68 23 49000 100500 5500
K60X68X25 29243/60 60 68 25 52500 110500 5500
K60X68X27 -- 60 68 27 59000 120500 6000
K60X75X42 -- 60 75 42 11300 19200 5500
K60X66X33 -- 60 66 33 45500 111500 6000
K60X66X40 -- 60 66 40 57500 150500 5500
K60X68X30 -- 60 68 30 44000 87500 5500
K60X68X34 -- 60 68 34 47500 95500 5500
62 K62X70X40 -- 62 70 40 65500 145500 5500
63 K63X70X21 -- 63 70 21 45000 100500 5500
64 K64X70X16 -- 64 70 16 27500 59500 5500
65 K65X70X20 49241/65 65 70 20 30000 76500 5500
K65X70X30 -- 65 70 30 43500 123500 5500
K65X73X23 -- 65 73 23 45500 93500 5000
K65X73X30 39243/65 65 73 30 56500 122500 5000
68 K68X74X20 49241/68 68 74 20 35000 83500 5000
K68X74X30 69241/68 68 74 30 46000 117500 5000
K68X74X35 79241/68 68 74 35 48000 124500 5000
K68X75X32 -- 68 75 32 53500 127500 4500
70 K70X76X20 49241/70 70 76 20 35500 85500 4500
K70X76X30 69241/70 70 76 30 51500 138500 4500
K70X78X25 29243/70 70 78 25 51500 111500 4500
K70X78X30 39243/70 70 78 30 59500 134500 4500
K70X80X30 29244/70 70 80 30 72500 147500 4500
K70X78X46 -- 70 78 46 77500 18800 4500
72 K72X80X20 19243/72 72 80 20 41000 84500 4500
73 K73X79X20 -- 73 79 20 36500 99500 4500
75 K75X81X20 49241/75 75 81 20 37000 93500 4500
K75X81X30 69241/75 75 81 30 51500 142000 4500
K75X83X23 -- 75 83 23 49500 108000 4000
K75X83X30 39243/75 75 83 30 61500 142000 4000
K75X83X35 49243/75 75 83 35 62500 146500 4000
K75X83X40 59243/75 75 83 40 72500 176500 4000

   Needle roller thrust bearing ( back to top )
Needle Roller Thrust Bearings are both have a form-stable cage to reliably guide and retain a large number of needle rollers. The diameter deviations of the rollers within one assembly are within 2 μm. Due to this, the bearings accommodate heavy axial loads and shock loads. These bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways and the space that needle roller thrust bearings take up no more space than a conventional thrust washer.
   Heavy Duty Needle Roller Bearings ( back to top )
Heavy Duty Needle Roller Bearings With Inner Ring


Shaft diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating   Limiting Speed
Current Orignal Code d Fw D C Cr Dynamic Cor Static Oil
mm g mm N rpm
8 NKI8   46 8 14 25 16 12400 11300 21500
9 NKI9/12   14.6 9 12 19 12 6200 7002 21700
10 NKI10/16   27.3 10 14 22 16 9808 10500 19650
NA4900 4524900 21 10 14 22 13 8006 9000 23700
NA6900 6534900 38.4 10 14 22 22 8281 11612 23700
12 NA4901 4524901 25.1 12 16 24 13 5047 6352 20000
NKI12/20   39 12 16 24 20 14000 18400 21000
NA6901 6534901 44.5 12 16 24 22 11647 17052 20000
NKIS12   58 12 18 30 16 16000 17000 20000
15 NKI15/16   38 15 19 27 16 8847 12853 19100
NKI15/20   45.7 15 19 27 20 12347 19053 19100
NA4902 4524902 32 15 20 28 13 6447 9053 18800
NA6902 6534902 61.6 15 20 28 23 13100 20900 18800
NKIS15   90 15 22 35 20 23500 24000 17000
17 NKI17/16   41.4 17 21 29 16 13000 18200 20000
NA4903 4544903 32.8 17 22 30 13 7010 10010 17000
NA6903 6534903 68.2 17 22 30 23 14400 24900 17000
20 NKI20/16   48.5 20 24 32 16 10800 17000 16700
NA4904 4524904 70.2 20 25 37 17 11912 16594 16200
NKIS20   119 20 28 42 20 16500 35500 14000
22 NKI22/16   50 22 25 34 16 8721 15340 16200
NA49/22   76 22 28 39 17 12996 19175 14360
NA69/22   130 22 28 39 30 21375 35750 14360
25 NKI25/30   115 25 29 38 30 31500 56000 14000
NA4905 4524905 76 25 30 42 17 13452 20475 13832
NA6905 6534905 138 25 30 42 30 19300 31750 13832
NKIS25   160 25 32 47 22 32000 55000 12500
F-208277   25 32 47 22
NKI25/20     25 29 38 20
28 NA49/28 45449/28 90.7 28 32 45 17 13900 20100 13832
NA69/28   170 28 32 45 30 22400 36850 13832
NKI28/20     28 32 42 20
30 NKI30/20     30 35 45 20
NKI30/30     30 35 45 30
32 NKI32/20     32 37 47 20
TAFI324720   32 37 47 20
NA49/32 45449/32 150 32 40 52 20 19000 32600 11134
NA69/32 66349/32 272 32 40 52 36 25500 68500 11134
35 NKI35/30   165 35 40 50 30 22200 51350 11134
NA4907 4524907 151 35 42 55 20 19800 41500 11134
NA6907 6534907 301 35 42 55 36 26000 60500 11134
NKIS35   210 35 43 58 22 33000 56000 9500
40 NKI40/20   124 40 45 55 20 22000 48000 10127
NKI40/30   184 40 45 55 30 35000 86000 10127
NA4908 4544908 123 40 48 62 22 31036 63873 8567
NA6908 6534908 401 40 48 62 40 64000 112000 8567
42 NKI42/20   138 42 47 57 20 26000 52500 9500
45 NKI45/25   218 45 50 62 25 36000 70000 8567
NKI45/35   289 45 50 62 35 41500 102000 8567
NA4909 4544909 260 45 50 68 22 37000 96500 8052
NA6909 6534909 479 45 50 68 40 61500 123500 8052
NKIS45   306 45 55 72 22 43000 71000 7500
50 NKI50/25 TAFI506825 262 50 55 68 25 32000 78000 7890
NA4910 4544910 264 50 58 72 22 41000 72000 7526
NA6910 6534910 457 50 58 72 40 68000 135000 7526
NKIS50   510 50 60 80 28 60000 95000 7200
NKI50/35 TAFI506835   50 55 68 35
55 NKI55/35   357 55 60 72 35 48000 126800 7256
NA4911 4544911 386 55 63 80 25 50600 96580 7156
NA6911 6534911 760 55 63 80 45 82560 172000 7156
60 NKI60/25   388 60 68 82 25 35500 85000 7156
NA4912 4544912 412 60 68 85 25 52800 110500 6022
NA6912 6534912 798 60 68 85 45 88500 186000 6022
NKIS60   550 60 70 90 28 65000 110000 6300
65 NA4913 4544913 435 65 72 90 25 57500 110500 6022
NA6913 6534913 821 65 72 90 45 87600 194500 6022
NKI65/25     65 73 90 25
70 NA4914 4544914 712 70 80 100 30 79000 154000 5111
NA6914 6534914 1326 70 80 100 54 121000 263000 5111
NKI70/35     70 80 95 35
75 NA4915 4544915 765 75 85 105 30 82000 158000 5111
NA6915 6534915 1429 75 85 105 54 128000 272000 5111
80 NA4916 4544916 870 80 90 110 30 81000 170500 5111
NA6916 6534916 1510 80 90 110 54 130500 280600 5000
NKI80/35     80 90 110 35
85 NA4917 4544917 1250 85 100 120 35 111000 237000 4600
NA6917 6534917 2200 85 100 120 63 166000 40000 4600
90 NA4918 4544918 1312 90 105 125 35 114000 250000 4400
NA6918 6534918 2310 90 105 125 63 172000 425000 4400
95 NA4919 4544919 1371 95 110 130 35 116000 260000 4200
NA6919 6534919 2500 95 110 130 63 174000 440000 4200
NKI95/36     95 105 125 36
100 NA4920 4544920 1900 100 115 140 40 120000 274000 4000
NKI100/30     100 110 130 30
110 NA4922 4544922 2070 110 125 150 40 132000 290000 3700
NA4822   1080 110 120 140 30 94000 216000 3900
120 NA4924 4544924 2860 120 135 165 45 181000 890000 3400
NA4824   1170 120 130 150 30 99000 239000 3600
130 NA4926 4544926 3900 130 150 180 50 223000 470000 3100
NA4826   1810 130 145 165 35 118000 310000 3200
140 NA4928 4544928 4150 140 160 190 50 209000 500000 2900
NA4828   1920 140 155 175 35 120000 325000 3000
   Track Roller Bearings ( back to top )
Shaft Diameter Bearing Designation and Approx Mass Boundary Dimensions  Basic Load Rating Limiting Speed
With IR Mass d D B C d1 Cr Dynamic Cor Static Grease
mm g mm N rpm
35 NUTR15 99 15 35 19 18 20 20500 24500 6500
NUTR202X   15 35 19 18 19.5 20500 24500 6500
40 NUTR17 147 17 40 21 20 22 21800 28500 5500
42 NUTR15 42 158 15 42 19 18 20 20500 24500 6500
47 NUTR17 47 220 17 47 21 20 22 21800 28500 5500
NUTR20 245 20 47 25 24 27 36900 48900 4200
52 NUTR20 52 321 20 52 25 24 27 36900 48900 4200
NUTR25 281 25 52 25 24 31 40800 58500 3400
62 NUTR25 62  450 25 62 25 24 31 40800 58500 3400
NUTR30 465 30 62 29 28 38 56800 77500 2600
72 NUTR30 72 697 30 72 29 28 38 56800 77500 2600
NUTR35 630 35 72 29 28 44 63000 91000 2100
80 NUTR35 80 836 35 80 29 28 44 63000 91000 2100
NUTR40 816 40 80 32 30 51 87900 108000 1600
NUTR3080   30 80 31 30 44 56800 77500 2500
85 NUTR45 883 45 85 32 30 55 93600 119000 1400
90 NUTR40 90 1129 40 90 32 30 51 87900 108000 1600
NUTR50 950 50 90 32 30 60 98900 140000 1300
100 NUTR45 100 1396 45 100 32 30 55 93600 119000 1400
110 NUTR50 110 1690 50 110 32 30 60 98900 140000 1300
   Axial Needle Roller and Cage Assemblies  ( back to top )
Axial Needle Roller and Cage Assemblies


Shaft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating     Limitng Speed
Dc1   Dc Dw Cr Dynamic Cor Static Oil
mm g mm N rpm
4 AXK0414TN 0.7 4 14 2 4380 7500 18000
5 AXK0515TN 0.8 5 15 2 4680 9100 17000
6 AXK0619TN 1 6 19 2 6740 15400 16000
8 AXK0821TN 2 8 21 2 7750 19000 15000
10 AXK1024 3 10 24 2 9150 24500 14000
12 AXK1226 3 12 26 2 9860 28600 13000
15 AXK1528 4 15 28 2 11200 35500 11000
17 AXK1730 4 17 30 2 11800 38600 10000
20 AXK2035 5 20 35 2 12900 45600 8500
25 AXK2542 7 25 42 2 13800 57800 7000
30 AXK3047 8 30 47 2 15600 69500 6000
35 AXK3552 10 35 52 2 16900 80100 5500
40 AXK4060 16 40 60 3 27500 113500 4700
45 AXK4565 18 45 65 3 29050 127600 4300
50 AXK5070 20 50 70 3 31500 138000 3900
55 AXK5578 28 55 78 3 37400 185000 3500
60 AXK6085 33 60 85 3 43900 232500 3200
65 AXK6590 35 65 90 3 45800 254600 3000
70 AXK7095 60 70 95 4 53600 254400 2900
75 AXK75100 61 75 100 4 54500 264600 2700
80 AXK80105 62 80 105 4 55600 278500 2600
85 AXK85110 67 85 110 4 57500 288000 2400
90 AXK90120 86 90 120 4 72500 401000 2300
100 AXK100135 104 100 135 4 90500 559500 2000
110 AXK110145 122 110 145 4 96500 617500 1900
120 AXK120155 131 120 155 4 101500 679600 1700
130 AXK130170 205 130 170 5 132400 838900 1600
140 AXK140180 219 140 180 5 137200 899600 1500
150 AXK150190 232 150 190 5 142800 959000 1400
160 AXK160200 246 160 200 5 147600 1015000 1300

Inch Series

7.92 NTA-512 2 7.92 19.5 1.984 4600 4100 7000
22.22 NTA-1423 5 22.22 36.5 1.984 10400 40800 50000
50.8 NTA-3244 18 50.8 69.85 1.984 19500 115130 56000

Axial Needle Roller Bearing With Centring Spigot On the Bearing Washer



Shaft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating    Limiting Speed
Dc1   D1  D B B1 Cr Dynamic Cor Static Oil
mm g mm N rpm
10 AXW10 8.3 10 14 27 3.2 3 9100 24000 14000
12 AXW12 9.1 12 16 29 3.2 3 8900 27800 13000
15 AXW15 10.1 15 21 31 3.2 3.5 10500 3500 11000
17 AXW17 11 17 23 33 3.2 3.5 10900 38800 10000
20 AXW20 14 20 26 38 3.2 3.5 12700 45600 8500
25 AXW25 19.5 25 32 45 3.2 4 13900 57500 7000
30 AXW30 22 30 37 50 3.2 4 15900 69500 6000
35 AXW35 26.6 35 42 55 3.2 4 17000 80100 5500
40 AXW40 39.2 40 47 63 4.2 4 27800 109000 4700
45 AXW45 43.4 45 52 68 4.2 4 29500 119900 4300
50 AXW50 49.2 50 58 73 4.2 4.5 31800 140900 3900

( back to top )


Copyright @ 2003-2010 Shanghai Sourcing Ltd. All rights reserved.
