Thrust ball bearing

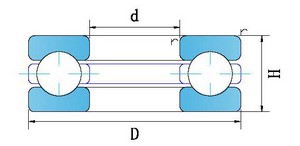

Thrust Ball Bearing is a separation-type bearing. Thrust Ball Bearings are applied to machine elements which bear single side axial load and with the lower the mechanical speed, such as crane hooks, immediately water pumps, immediately centrifuges, jacks, low-speed reducer and so on. Thrust Ball bearing shaft should not restrict the radial displacement, low speed limit. One-way thrust ball bearings can be restricted to the shell axis and the axial displacement in one direction, two-way bearings can restrict the axial displacement in both directions
   Open type center adjustment ( back to top )



FM series (channel):

Type d D d1 D1 H The basic dynamic load rating Cr(N) Static load rating basic Cor(N) Speed rpm gangqiu
Grease lubrication Oil lubrication Number diameter
F3-8M 3 8 3.2 7.8 3.5 600 480 11000 15000 6 1.588
F4-9M 4 9 4.2 8.8 4 800 520 8000 12000 6 1.588
F4-10M 4 10 4.2 9.8 4 658 580 6000 10000 6 1.588
F5-10M 5 10 5.2 9.8 4 950 830 5100 8100 7 1.588
F5-11M 5 11 5.2 10.8 4.5 988 880 5000 8000 7 1.588
F5-12M 5 12 5.2 11.8 4 988 880 5000 8000 7 1.588
F6-12M 6 12 6.2 11.8 4.5 1600 1255 5000 7000 8 2
F6-14M 6 14 6.25 13.8 5 1800 1588 4000 7000 8 2.381
F7-13M 7 13 7.2 16.8 4.5 1422 1255 4000 7000 9 2
F7-15M 7 15 7.2 14.8 5 2200 2000 3600 7100 8 2.5
F7-17M 7 17 7.2 16.8 6 2600 2256 3500 7000 8 2.381
F8-16M 8 16 8.2 15.8 5 2500 3000 4000 8000 9 3
F8-19M 8 19 8.2 18.8 7 3452 3000 3000 5000 8 3.175
F9-20M 9 20 9.2 19.8 7 3356 2999 2500 4500 8 3.175
F10-18M 10 18 10.2 17.8 5.5 2230 2721 2500 4500 10 2.381
F series (no channel) ( back to top )

Type d D d1 D1 H The basic dynamic load rating Cr(N) Static load rating basicCor(N) Gangqiu
Number diameter
F2-6 2 6 2 6 3 117 83 6 1
F2X-7 2.5 7 2.5 7 3.5 156 117 6 1.2
F3-8 3 8 3.2 7.8 3.5 600 480 6 1.588
F4-9 4 9 4.2 8.8 4 800 520 6 1.588
F4-10 4 10 4.2 9.8 4 658 580 6 1.588
F5-11 5 11 5.2 10.8 4.5 988 880 7 1.588
F6-12 6 12 6.2 11.8 4.5 1600 1255 8 2
F7-15 7 15 7.2 14.8 5 2200 2000 8 2.5
F8-16 8 16 8.2 15.8 5 2500 3000 9 3
F9-17 9 17 9.2 16.8 5 578 627 10 2.381
F10-18 10 18 10.2 17.8 5.5 2230 2721 10 2.381

I.e.one-way thrust ball bearing types and specifications and relevant parameter table:
( back to top )

Type Size(mm) Heavy volume(kg)
SUNTHAI d D H
51100 10 24 9 0.0193
51101 12 26 9 0.0214
51102 15 28 9 0.0243
51103 17 30 9 0.0253
51104 20 35 10 0.038
51105 25 42 11 0.056
51106 30 47 11 0.066
51107 35 52 12 0.083
51108 40 60 13 0.12
51109 45 65 14 0.15
51110 50 70 14 0.16
51111 55 78 16 0.24
51112 60 85 17 0.29
51113 65 90 18 0.324
51114 70 95 18 0.36
51115 75 100 19 0.392
51116 80 105 19 0.433
51117 85 110 19 0.46
51118

90

 120 22 0.655
51120 100 135 25 1.0
51122 110 145 25 1.08
51124 120 155 25 1.2
51126 130 170 31 1.85
51130 150 190 31 2.20
51132 160 200 31 2.35
51134 170 215 34 3.30
Type Size(mm) Heavy volume(kg)
SUNTHAI d D H
51200 10 26 11 0.0293
51201 12 28 11 0.0324
51202 15 32 12 0.0444
51203 17 35 12 0.0506
51204 20 40 14 0.0733
51205 25 47 15 0.109
51206 30 52 16 0.138
51207 35 62 18 0.22
51208 40 6 19 0.27
51209 45 73 20 0.32
51210 50 78 22 0.39
51211 55 90 25 0.619
51212 60 95 26 0.69
51213 65 100 27 0.75
51214 70 105 27 0.79
51215 75 110 27 0.815
51216 80 115 28 0.925
51217 85 125 31 1.3
51218

90

 135 35 1.77
51220 100 150 38 2.4
51222 110 160 38 2.6
51224 120 170 39 2.9
51226 130 190 45 4.32
51228 140 200 46 4.6
51230 150 215 50 6.10
51232 160 225 51 6.55
Type Size(mm) Heavy volume(kg)
SUNTHAI d D H
51304 20 47 18 0.150
51305 25 52 18 0.171
51306 30 60 21 0.265
51307 35 68 24 0.378
51308 40 78 26 0.55
51309 45 85 28 0.69
51310 50 95 31 1
51311 55 105 35 1.34
51312 60 110 35 1.43
51313 65 115 36 1.57
51314 70 125 40 1.95
51315 75 135 44 2.7
51316 80 140 44 2.8
51317 85 150 49 3.7
51318 90 155 50 3.9
51320 100 170 55 5.1
51322 110 190 63 7.85
51324 120 210 70 11.00
51326 130 225 75 13.00
51406 30 70 28 0.50

Type

SUNTHAI

Size(mm)

额定载荷(KN)

极限转速(r/min)

重量

(kg)

d

D

T

Ca

Coa

脂润滑

油润滑

51405

25

60

24

55.6

89.4

2600

4000

0.34

51406

30

70

28

72.8

126

2200

3400

0.53

51407

35

80

32

87.1

155

1900

2900

0.79

51408

40

90

36

113

205

1700

2600

1.14

51409

45

100

39

130

242

1500

2300

1.47

51410

50

110

43

148

283

1400

2100

1.99





   Double-direction thrust ball bearing ( back to top )
52202 52204 52205 52206 52207 52208 52209 52210 52211 52212 52213 52214 52215 52216 52217 52218 52220 52222 52224 52226X 52228X 52230X 52232X 52234X 52236X 52238X 52240X 52244X 52305 52306 52307 52308 52309 52310 52311 52312 52313 52314 52315 52316 52317 52318 52320 52322X 52324X 52326X 52328X 52330X 52332X 52334X 52336X 52338X 52340X 52405 52406 52407 52408 52409 52410 52411 52412 52413 52314 52415 52416 52417X 52418X 52420X 52422X 52426X 52428X 52430X 52432X 52434X 52436X
SUNTHAI d d1 D H Weight(kg)
52202 15 10 32 26 0.085
52204 20 15 40 26 0.144
52205 25 20 47 28 0.23
52206 30 25 52 29 0.26
52207 35 30 62 34 0.405
52208 40 30 68 36 0.54
52209 45 35 73 37 0.64
52210 50 40 78 39 0.71
52211 55 45 90 45 1.12
52212 60 50 95 46 1.15
52213 65 55 100 47 1.36
52214 70 55 105 47 1.52
52215 75 60 110 47 1.6
52216 80 64 115 48 1.73
52217 85 70 125 55 2.22
52218 90 75 135 62 3.14
52220 100 85 150 67 4.2
   Outer casting with one-way thrust ball bearing ( back to top )
Type Size(mm)
d D T
25TAG11 25.2 43.5 12
25TAG12 25.2 48.6 16
28TAG12 28.2 51.6 16.8
(28TAG001)
T28S1 28.2 53.2 16.4
30TAG12 30.2 54 17
(30TAG001)
32TAG12 32.2 57 17
35TAG12 35.2 64 19
(35TAG001)
40TAG12 40.2 70.5 20.2
(40TAG001)
47TAG001D 47 78.0 23
50TAG001 50.2 80 19
TAG45-1 45.2 72 15
T4072RS 40 74.4 21.5
50TAG801 50 75.5 19
T5082RS 50.2 85 19
Y-22-1 22.2 40 12.8
Y-25-3 25.2 45 13.8
Y30-1AB 30.2 54 13.8
198905 25.1 49 16
198707 35 55 13
98906 30.1 53 16
98908 38.2 66 18
5.31 28 56 16
5.32 28.3 51.6 16.5
轴承型号 外形尺寸 重量
SUNTHAI d D H
606V 15.875 36.12 11.50 0.051
98905 25.1 49 16 0.138
98906 30.1 53 16 0.138
98908 38.2 66 18 0.235
588909 45 73 17 0.23
588911 52.388 84.5 20.7 0.37
688711 55 91.5 20.3 0.44
688911 52.388 84.5 20.7 0.403
688808K 40 67 14.25 0.17
9588217 85 125 24.5
   Special plane thrust ball bearing ( back to top )


Type

Size(mm)

Rated load(KN)

Speed(r/min)

Weight(kg)

d

D

T

Ca

Coa

Grease lubrication

Oil lubrication

53205U

25

47

19

27.8

50.4

3600

5500

0.152

53305U

25

52

22

35.7

61.4

3100

4800

0.224

53206U

30

52

20

29.3

58.2

3400

5200

0.193

53306U

30

60

25

42.8

78.7

2700

4200

0.326

53207U

35

62

22

39.2

78.2

2900

4500

0.277

53307U

35

68

28

55.5

105

2400

3700

0.484

53208U

40

68

23

46.9

98.3

2700

4200

0.34

53308U

40

78

31

69.3

135

2100

3300

0.69

53209U

45

73

24

47.7

105

2600

4000

0.397

53309U

45

85

33

80

163

1900

3000

0.85

53210U

50

78

26

48.5

111

2300

3600

0.48

53310U

50

95

37

91.6

186

1800

2700

1.24

53211U

55

90

30

69.4

159

2100

3200

0.77

53311U

55

105

42

119

246

1600

2400

1.69

53212U

60

95

31

73.6

179

1900

3000

0.85

53312U

60

110

42

124

267

1500

2300

1.78

53213U

65

100

32

74.8

189

1900

2900

0.93

53313U

65

115

43

128

287

1400

2200

1.95

53214U

70

105

32

73.6

189

1800

2800

0.99

53314U

70

125

48

148

339

1300

2000

2.56

53215U

75

110

32

77.4

209

1800

2700

1.06

53315U

75

135

52

171

396

1200

1900

3.27
Type Size(mm)
d D T
B1 12.78 30.96 15.88
B2 14.38 30.96 15.88
B3 15.95 34.14 15.88
B4 17.55 34.14 15.88
B5 19.13 37.31 15.88
B6 20.73 37.31 15.88
B7 22.3 46.84 19.05
B8 23.9 46.84 19.05
B10 27.08 50.01 19.05
B11 28.65 53.19 19.05
B12 30.25 53.19 19.05
B13 28.65 53.19 19.05
B14 33.43 59.54 19.05
B15 35 62.71 19.05
B16 36.6 52.71 19.05
B17 38.18 65.89 19.05
B18 39.78 65.89 19.05
B19 41.35 75.41 22.22
B20 42.95 75.41 22.22
B21 44.53 78.59 22.22
B22 45.13 78.59 22.22
B23 47.7 81.76 22.22
B24 48.3 81.76 22.22
B25 50.88 84.94 22.22
B26 52.48 84.94 22.22
B27 54.05 91.29 22.22
B28 55.65 91.29 22.22
B29 57.23 94.46 22.22
B30 58.83 94.46 22.22
B31 60.4 97.64 22.22
B32 62 97.64 22.22
B33 63.58 100.81 22.22
B34 85.16 100.81 22.22
B35 66.75 110.34 28.58
B36 67.08 110.34

28.58
