| Bearing code | Dimensions(mm) | Rated load (kn) |
Cooperate | Radial force (Kg) | Speeds (r/min) |
Lubricate | Machine type | |||||

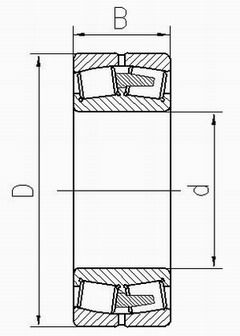

| d | D | B | r smin | Cr (KN) | Cor (KN) | hole | axis | |||||
| 22328 22234 |
140 170 | 300 310 | 102 86 | 4 4 | 1110 1000 | 1430 1520 | -- | -- | (max) 27,500 | 300 | Oil bath | -- |
| 22336 22248 |
180 240 | 380 440 | 126 120 | 4 4 | 1710 1920 | 2520 3050 | -- | -- | (max) 37,400 | 275 | Oil bath | ST type 15-30 18-30 |
| 22340 23148 |
200 240 | 420 400 | 138 128 | 5 4 | 2040 1730 | 3050 3050 | -- | -- | 27,000 | 275 | Oil bath | 20-34 |
| 22352BC3 23160BC3 | 260 300 | 540 500 | 165 160 | 6 5 | 3100 2690 | 4700 4850 | J6 | n6 | (max) 36,000 | 250 | Oil bath | 30-42 |
| 23260 23168BC3 | 300 340 | 540 580 | 192 190 | 5 5 | 3450 3600 | 6000 6600 | J6 | p6 | -- | 225 | Oil bath | 36-48 |
| 23268 23180BC3 | 340 400 | 620 650 | 224 200 | 6 6 | 4400 4200 | 7850 8050 | J6 | p6 | (max) 63,300 | 225 | Oil bath | 42-54 |
| 23276 3188 |
380 440 | 680 720 | 240 226 | 6 6 | 5200 5200 | 9650 10100 | J6 | r6 | (max) 152,000 | 200 | Oil bath | 48-60 |
| 23292 231/530C3 | 460 530 | 830 870 | 296 272 | 7.5 7.5 | 7700 7000 | 14300 14200 | J6 | r6 | (max) 193,000 | 180 | Oil bath | 54-74 |
| 2R5209C3 23240BC3 | 200 | 360 | 128 | 4 | 1610 | 2640 | -- | -- | -- | 210 | Oil bath | A1 type 28-36 |
2R6804C3 23244BC3 |
220 | 400 | 144 | 4 | 1970 | 3250 | -- | -- | -- | 200 | Oil bath | 32-42 |
| 2R7603C3 23256BC3 |
280 | 500 | 176 | 5 | 2930 | 5150 | -- | -- | -- | 190/170 | Oil bath | 42-48 48-60 |
| 2R8801C3 23268BC3 |
340 | 620 | 224 | 6 | 4400 | 7850 | -- | -- | -- | 150 | Oil bath | 54-74 |
| 232/500BC3 231/560BC3 | 500 560 | 920 920 | 336 280 | 7.5 7.5 | 9400 7650 | 17800 15500 | -- | -- | -- | 160 | Oil bath | 60-84 |
| 22219 23218 |
95 90 | 170 160 | 43 52.4 | 2.1 2 | 291 315 | 385 455 | -- | -- | -- | 300 | -- | SC-1007 |
| 23136 23224 |
180 120 | 300 215 | 96 76 | 3 2.1 | 1030 585 | 1730 880 | -- | -- | -- | 300 | -- | SC-1610 |
| 22232 23134 |
160 170 | 290 280 | 80 88 | 3 2.1 | 870 885 | 1290 1490 | -- | -- | -- | 300 | -- | SC-2010 |
| 22334 23238 |
170 190 | 360 340 | 120 120 | 4 4 | 1520 1420 | 2150 2360 | -- | -- | -- | 275 | -- | SC-2415 |
| 22340 23244 |
200 220 | 420 400 | 138 144 | 5 4 | 2040 1970 | 3050 3250 | -- | -- | -- | 268 | -- | SC-3018 |
| 22344 23248 |
220 240 | 460 440 | 145 160 | 5 4 | 2350 2380 | 3500 4000 | -- | -- | -- | 250 | -- | SC-3624 |
| 23260C3 2R8005C4 | 300 | 540 | 192 | 5 | 3450 | 6000 | -- | -- | 38,600 32,500 | 185 | Oil bath | -- |
| 23260C3 2R7604C4 |
300 | 540 | 192 | 5 | 3450 | 6000 | -- | -- | 39,700 33,700 |
200 | grease | -- |
| 23232C3 2R4409C4 | 160 | 290 | 104 | 3 | 1050 | 1660 | -- | -- | 12,000 11,000 |
250 | grease | -- |
| 22328 23236 |
140 180 | 300 320 | 102 112 | 4 4 4 | 1110 1260 | 1430 2080 | -- | -- | -- | -- | -- | -- |
| 22328 22234 |
140 170 | 300 310 | 102 86 | 4 4 | 1110 1000 | 1430 1520 | -- | -- | -- | -- | -- | -- |
| 22332 23240 |
160 200 | 340 360 | 114 128 | 4 4 | 1390 1610 | 1950 2640 | -- | -- | -- | -- | -- | -- |
| 22340 23248 |
200 240 | 420 440 | 138 160 | 5 4 | 2040 2380 | 3050 4000 | -- | -- | -- | -- | -- | -- |
| 23168K 23180K | 340 400 | 580 650 | 190 200 | 5 6 | 3600 4200 | 6600 8050 | -- | -- | 86,000 | 175 | -- | -- |
| 22326 | 130 | 280 | 93 | 4 | 985 | 1260 | -- | -- | -- | 260 | grease | -- |
| 22320 | 100 | 215 | 73 | 3 | 605 | 755 | -- | -- | 6,700 | 350 | -- | -- |
| 23260BC3 | 300 | 540 | 192 | 5 | 3450 | 6000 | -- | -- | -- | -- | -- | -- |
| 23140BC3 | 200 | 340 | 112 | 3 | 1350 | 2270 | -- | -- | 27,000 | 250 | grease | -- |
| 24184CK | 420 | 700 | 280 | 6 | 5750 | 11400 | -- | -- | -- | -- | -- | -- |
| 23264CAK | 320 | 580 | 208 | 5 | 3850 | 6700 | -- | -- | -- | -- | -- | -- |
| 23276CAK | 380 | 680 | 240 | 6 | 5060 | 9150 | -- | -- | -- | -- | -- | -- |
